RFID Invisible Cabinet Lock
Model IL868Brand IdentiumAvailability In Stock

RFID Invisible Cabinet Lock

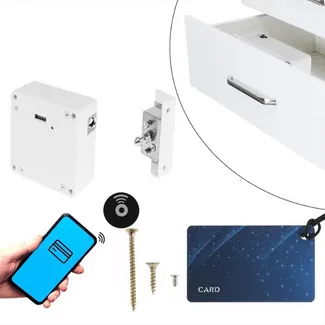

A hidden RFID lock that mounts inside a drawer, cabinet or locker, leaving nothing visible on the outside. It opens with a card, wristband or key fob and runs on four AAA batteries.

Model:
IL868
Brand:
Identium
Frequency:
13.56 MHz / 125 kHz
Protocol:
ISO 14443A air interface
Read range:
Up to 5 cm
Datasheet:
PDF · 190 KB
Listing updated:

₹4,800

per piece + 18% GST

₹5,664 incl. GST

Min. order 1 pieceRequest a quote and pay by NEFT or UPI against the quotation

  • 7-day replacement · 1-year warranty against manufacturing defects
  • Blue Dart next-day delivery
  • Ordered by quotation · in-stock items are dispatched the same day after payment · shipping is shown in your quotation

Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.

Key features

  • Mounts inside the furniture: no keyhole or lock body on show
  • Opens with a card, wristband or key fob at 0–5 cm
  • 13.56 MHz / 125 kHz, ISO 14443A air interface
  • Motor-driven stainless steel latch in a polycarbonate housing
  • Runs on 4 × AAA batteries (6 V), no wiring needed
  • Rated for -20 °C to +85 °C
Watch the product video

Overview

What the IL868 invisible RFID cabinet lock does

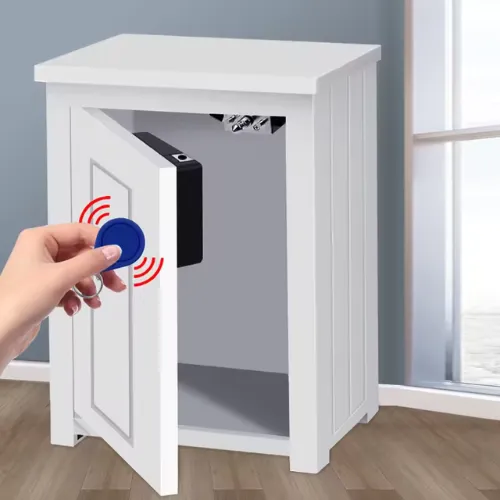

The IL868 is fitted on the inside of a drawer, cabinet or locker, so nothing shows on the outside of the furniture: no keyhole, no keypad, no visible lock. To open it, the user holds an authorised card, wristband or key fob against the panel, within 0–5 cm of the lock. A motor-driven stainless steel latch then releases the door or drawer.

Why choose a hidden lock

  • Nothing on show to tamper with. With no lock body on the outside, there is no cylinder to pick or force.
  • Furniture keeps its look. Desks, file cabinets and wardrobes stay clean, which matters in offices and hotel rooms.
  • Simple retrofit. It runs on four AAA batteries, so no cables have to be routed through the cabinet.

Planning the installation

Hidden RFID locks read the credential through the door or drawer front, so they are meant for wood, laminate, MDF or plastic panels; RFID signals do not pass through sheet steel. Keep the panel thin enough that the card comes within the 5 cm read distance, and allow about 15 × 8 × 5 cm of space inside for the lock body.

The lock weighs about 0.25 kg in its polycarbonate housing and is rated for -20 °C to +85 °C, so it suits storerooms and furniture in non-air-conditioned rooms as well as offices.

Where it is used

The IL868 is listed for storage lockers, cabinets, deposit lockers and file lockers. Typical installs are staff drawers for personal belongings, file cabinets in HR or accounts, and deposit lockers behind a reception counter.

Cards, fobs and wristbands

The lock is listed for 13.56 MHz and 125 kHz credentials with an ISO 14443A air interface. Users can carry a card, a key fob or an RFID wristband, whichever is easiest to keep with them. Tell us the card type you already use when ordering so the credentials and locks match. For locks that mount on the outside of the door, see all RFID Locks.

Where the IL868 is used

  • Storage lockers
  • Deposit lockers
  • File lockers
  • Office cabinets
  • Desk drawers

Product video

Invisible RFID Cabinet Lock
All product videos →

Specifications

Datasheet (PDF)
ModelIDTS-IL868
Frequency13.56 MHz / 125 kHz
ProtocolISO 14443A air interface
Read rangeUp to 5 cm
Unlock methodCard, wristband, key fob
DriveMotor / servo
Power6 V, 4 × 1.5 V AAA batteries
Dimensions150 × 80 × 50 mm
Weight0.25 kg
MaterialPolycarbonate housing, stainless steel latch
Operating temperature-20 °C to +85 °C
Compatible withStorage lockers, cabinets, deposit lockers, file lockers

Frequently asked questions

How does the invisible cabinet lock work?
The IL868 is mounted inside the drawer or cabinet. When an authorised card, wristband or key fob is held against the panel within 0–5 cm of the lock, a motor-driven stainless steel latch releases, so no visible keyhole or handle lock is needed.
Which cards can open the IL868?
It is listed for 13.56 MHz and 125 kHz credentials with an ISO 14443A air interface. Cards, wristbands and key fobs are all supported unlocking methods.
Will it work on a steel cabinet?
Hidden RFID locks read through the door or drawer front, and RFID signals do not pass through sheet metal. The IL868 is therefore suited to wooden, laminate, MDF or plastic furniture. For steel cabinets, choose a lock that mounts on the outside of the door.
Does it need wiring or a power supply?
No. It runs on 6 V from four 1.5 V AAA batteries inside the unit, which makes it simple to retrofit to existing cabinets, drawers and lockers.
How much space does it need inside the cabinet?
The lock measures 15 × 8 × 5 cm and weighs about 0.25 kg, so plan for that footprint on the inside of the door or drawer front.
