Model IDTS-KPL7Identium
RFID Card & Password Keypad Cabinet Lock IDTS-KPL7
A keyless lock for wooden cabinets, wardrobes, drawers and lockers that opens with a password on its touch keypad or with an RFID card. The keypad mounts outside the door and the battery-powered lock body inside, so no mains power or cable run is needed.
Price on request
Minimum order: 1 piece · the final price for your quantity is confirmed in the quote
View datasheet PDF · 198 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
Key features
- Opens with a password on the touch keypad or an RFID card at the CARD area
- Decoy digits: type extra numbers before and after the real code to stop onlookers
- Keypad outside, lock body inside, joined through Φ8 mm and Φ15 mm holes in the door
- Runs on 4 × AA batteries (6 V); no mains power or cable run to the cabinet
- Low-voltage beep below 4.5 V; will not lock below 4 V
- Card compatibility checked against your card type or a sample before you order
- Operating temperature
- -15 °C to +55 °C
- Door thickness
- Tell us your door thickness and we confirm fit in the quotation
Overview
Who the IDTS-KPL7 RFID card and password cabinet lock suits
The IDTS-KPL7 suits wooden office cabinets, wardrobes and drawers where regular users carry a card and others, such as visitors or temporary staff, use a code. Two things to settle before ordering: the card type, which we confirm in your quotation, and the fitting, which needs holes drilled through the door and a strike plate on the cabinet frame.
Fitting the keypad and lock body

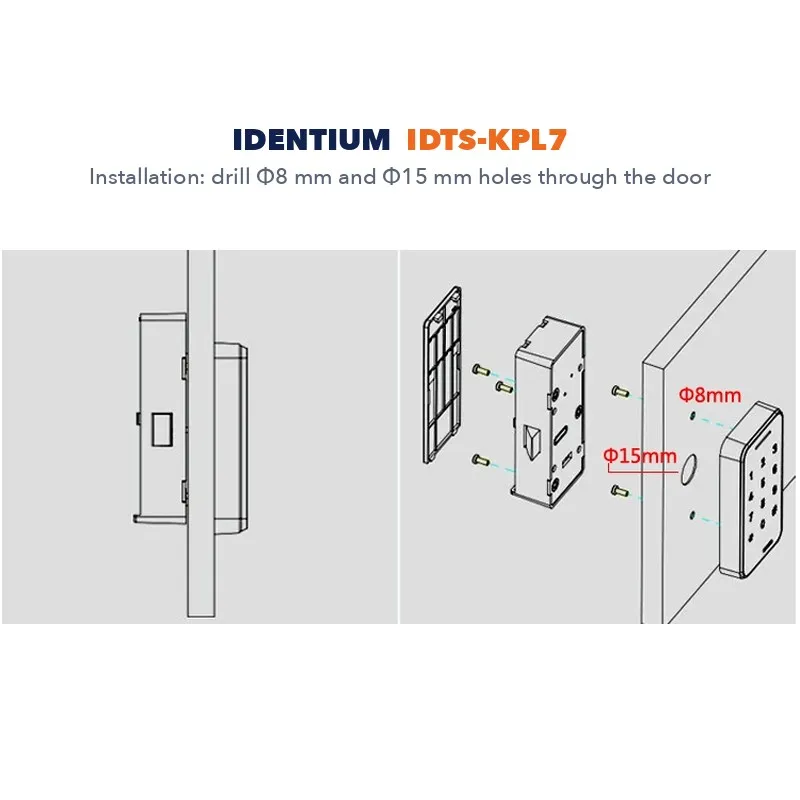

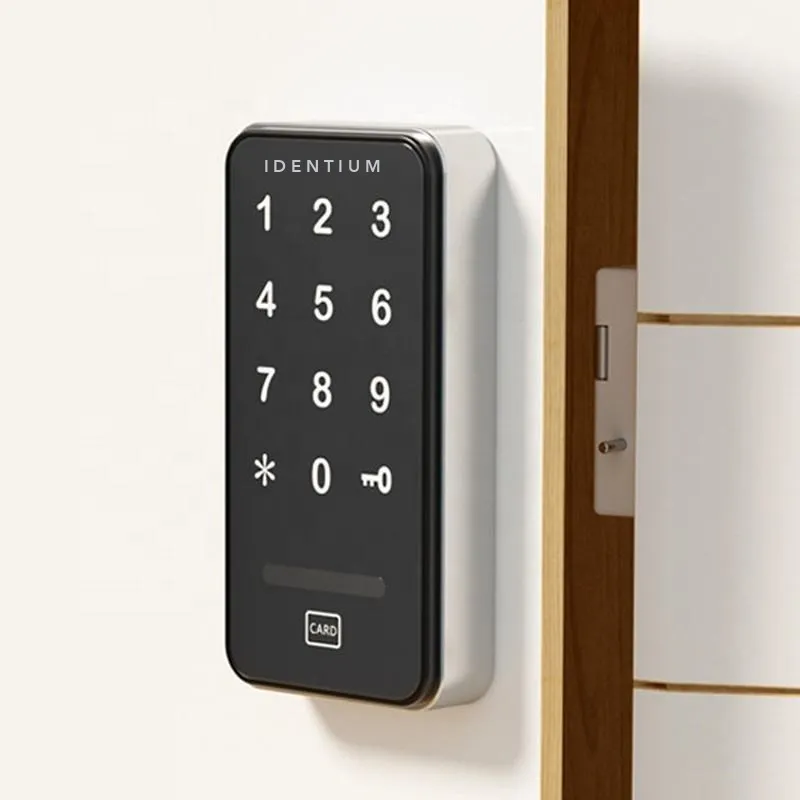

The keypad sits on the outside of the door. The lock body, which holds the sliding latch and the batteries, fits on the inside face, and its latch engages a strike plate fixed to the cabinet frame. The two parts are joined through Φ8 mm and Φ15 mm through-holes drilled in the door, as shown on the installation drawing.
Check the space as well: the inside face needs a flat area for the 65 × 145 mm lock body, which stands 22 mm off the door, and the frame needs room for the 40 × 77 mm strike plate.
Send us the door thickness with your enquiry and we will confirm the fit before you order.
Code entry and batteries

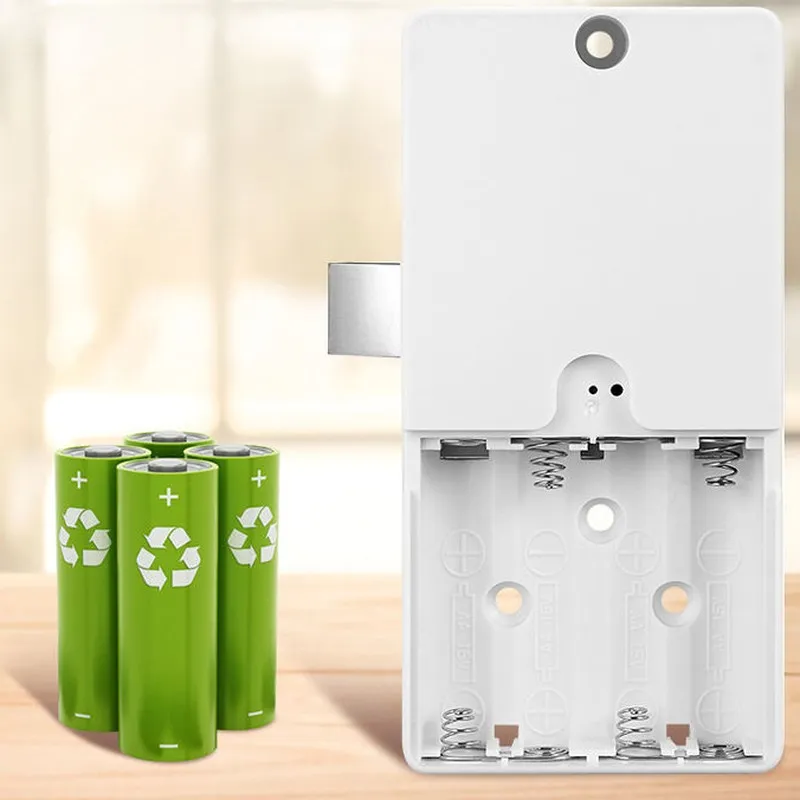

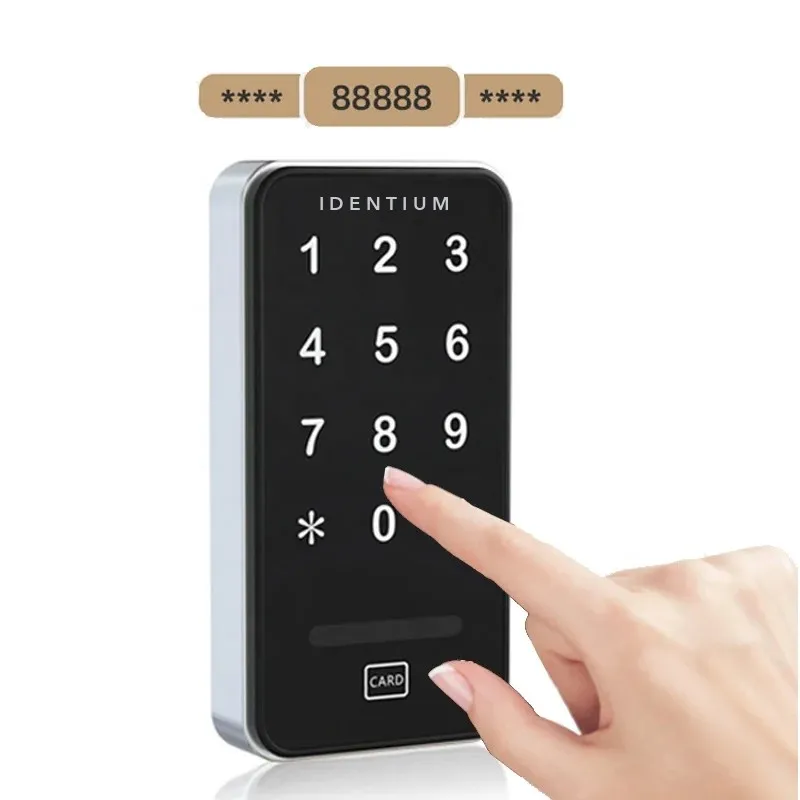

Extra digits can be typed before and after the real password, so someone watching cannot pick out the code. Four AA cells (6 V) in the lock body power it, so no mains power or cable run to the cabinet is needed. Below 4.5 V it beeps as a warning; below 4 V it cannot be locked until the cells are changed.
How the IDTS-KPL7 compares with our other cabinet locks
| Model | Opens with | Power | Made for |
|---|---|---|---|
| IDTS-KPL7 | Password or RFID card; card type confirmed in your quotation | 4 × AA cells | Wooden doors, with through-holes drilled and a strike plate on the frame |
| ID-RP-02 | RFID card, password, or a documented card + code two-factor mode | 4 × AA cells | Office cabinets and gym lockers |

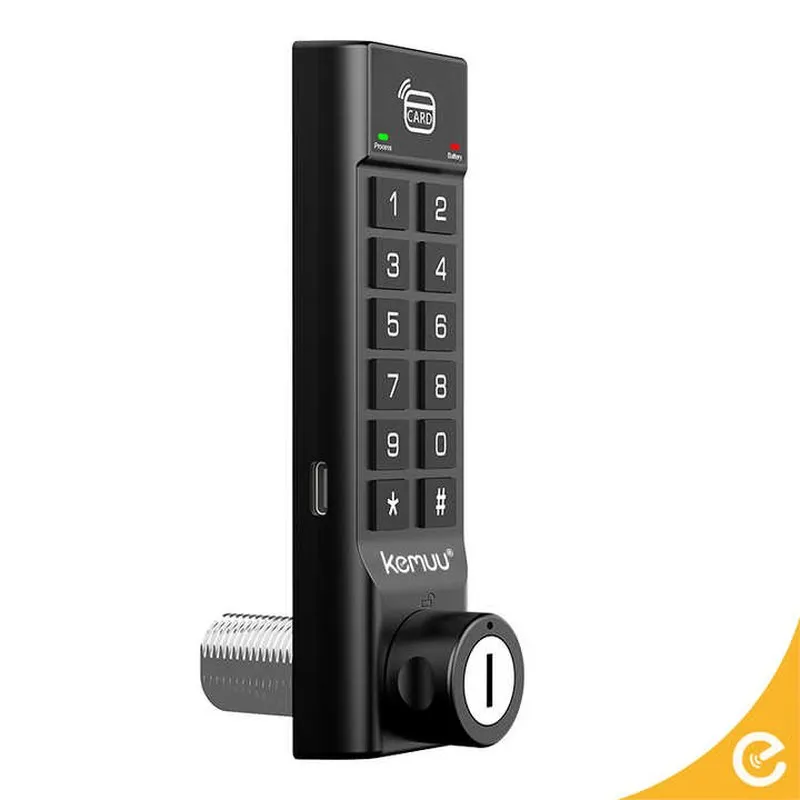

| ID-DCL-G100 | Password, RFID card or mechanical override key | Rechargeable, with USB-C emergency power | Wood or steel doors 1–28 mm thick |

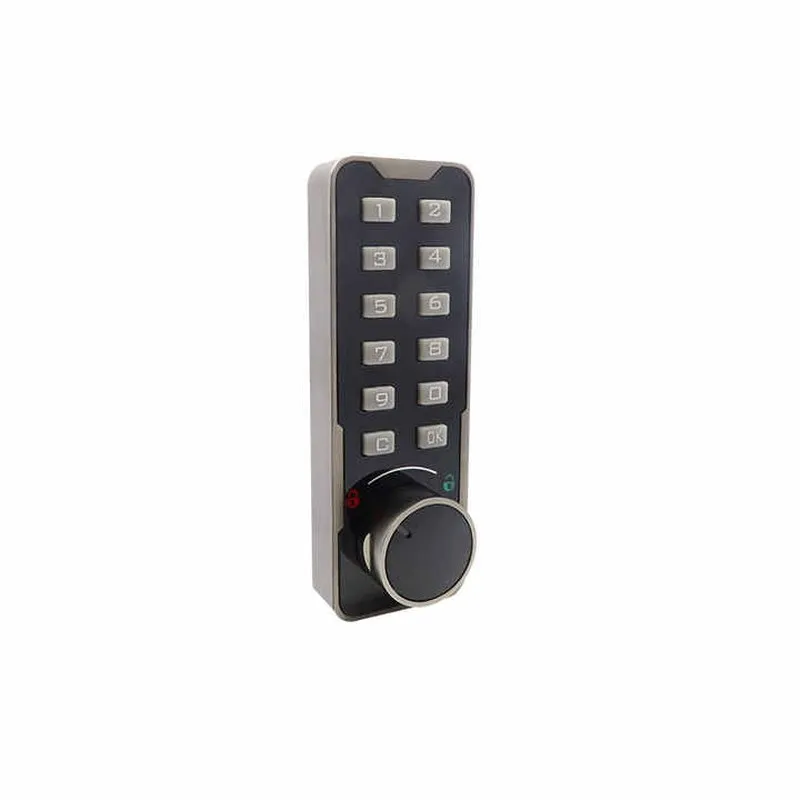

| ID-DKL-1986 | Password only | 1 × CR2450 cell | An existing 18 mm cam-lock cutout |
For day-use gym lockers, where any guest takes any free locker, the ID-RP-01 has a public mode made for that. Every model is listed under RFID locks.
Typical applications
- Wooden office cabinets
- Wooden wardrobes
- Wooden staff lockers
- Desk drawers
- Phone charging cabinets
- Shoe cabinets
- Wooden deposit lockers
Specifications
Datasheet (PDF)| Lock type | Surface-mounted cabinet lock: outer keypad, inner lock body with sliding latch, strike plate |
|---|---|
| Unlock method | Password on touch keypad, RFID card |
| Keypad | Keys 1–9, * and 0 plus a key button; card reading area below the keys; status bar |
| Code privacy | Extra (decoy) digits accepted before and after the correct password |
| Card compatibility | Confirmed in your quotation: send us your card type or a sample card |
| Response time | 0.2 s |
| Power | 4 × 1.5 V AA batteries (6 V); supply range 3.5–6 V |
| Low-battery warning | Sound prompt below 4.5 V; will not lock below 4 V |
| Operating temperature | -15 °C to +55 °C |

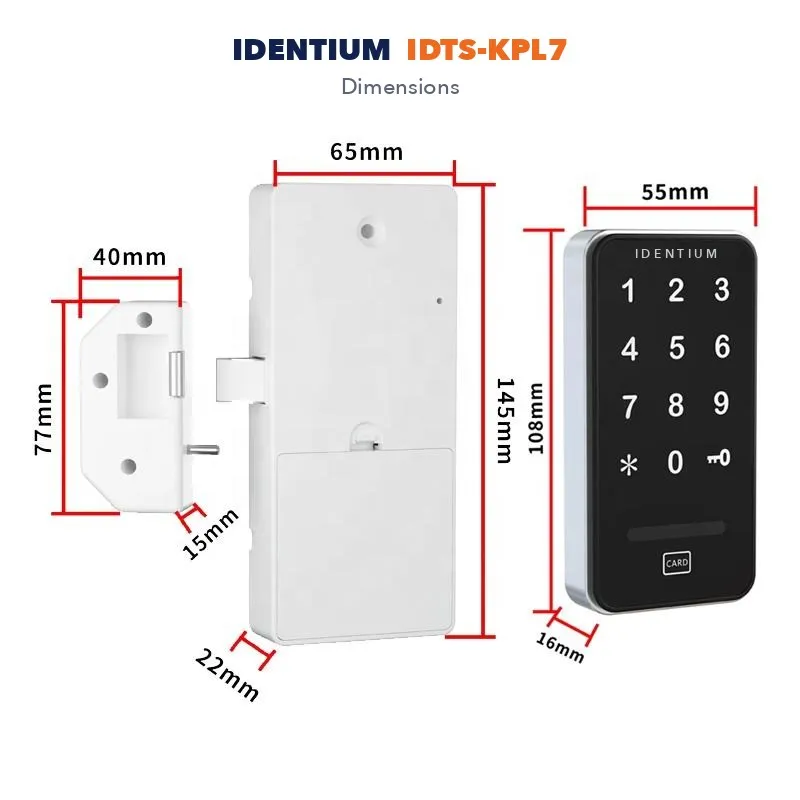

| Dimensions | Keypad 55 × 108 mm, 16 mm thick; lock body 65 × 145 mm, 22 mm deep; strike plate 40 × 77 mm (from the dimension drawing) |
| Latch projection | 15 mm (from the dimension drawing) |
| Mounting | Keypad on the outer face, lock body on the inner face, joined through Φ8 mm and Φ15 mm holes drilled in the door |
| Door thickness | Tell us your door thickness and we confirm fit in the quotation |
| Compatible with | Wooden cabinet, wardrobe, drawer and locker doors |

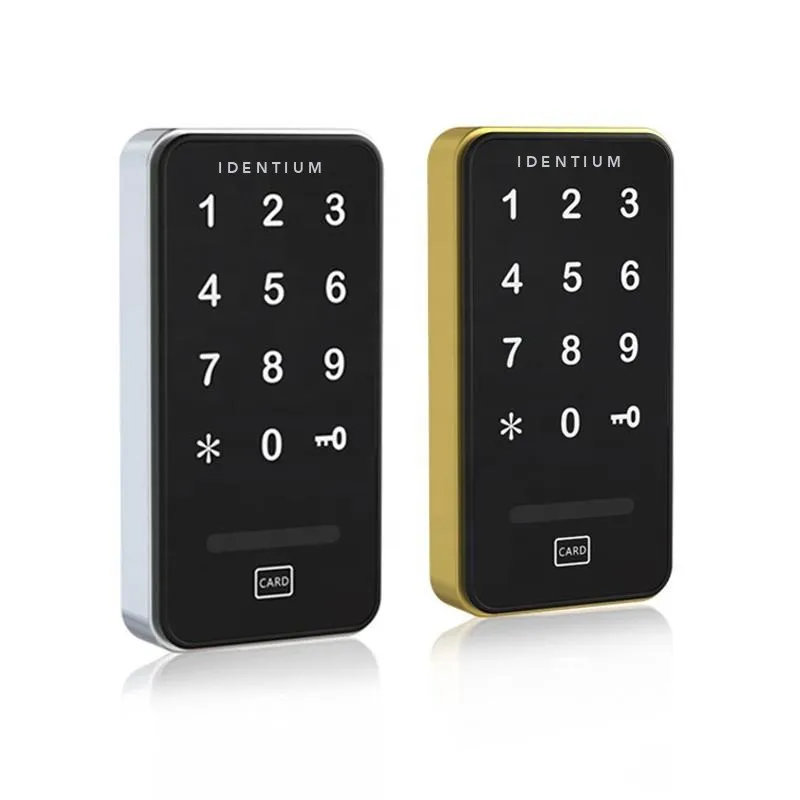

| Colour | Black keypad; frame finish (silver or gold, as pictured) confirmed in quotation |

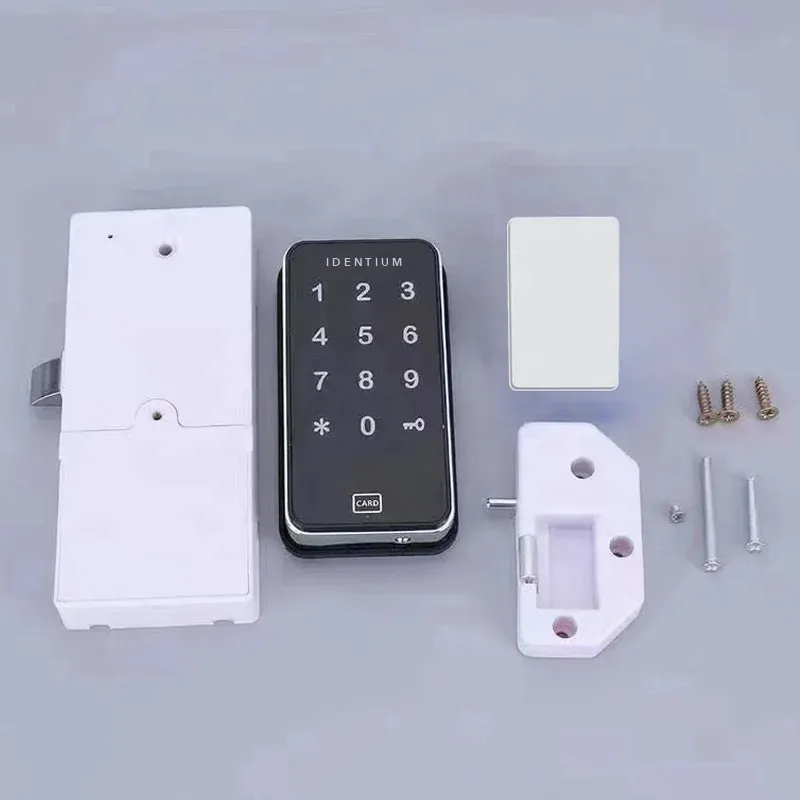

| In the box | Keypad, lock body, strike plate, 1 RFID card, screws, 2 connecting bolts |
| Packaging | One set per colour box, 150 × 80 × 50 mm; 66 sets per carton |
Frequently asked questions
Which RFID cards work with the IDTS-KPL7?
One RFID card comes with each lock. If you want to use other cards, wristbands or key fobs, such as staff ID or attendance cards, send us the card type or a sample with your enquiry, and we will confirm in the quotation whether the lock can use them.
How is the IDTS-KPL7 different from the ID-RP-02 and ID-DKL-1986?
The ID-RP-02 lists the card types it reads and has a documented mode that needs both card and code, so it is the one to choose for sensitive cabinets. The ID-DKL-1986 is password-only and fits an existing 18 mm cam-lock cutout. The IDTS-KPL7 gives card or code access on wooden doors, but is fitted by drilling through the door and fixing a strike plate to the frame.
What batteries does it take, and what happens when they run low?
Four 1.5 V AA cells (6 V). They sit in the lock body on the inside of the door, so change them when the 4.5 V warning sounds; below 4 V the lock cannot be locked. If your site needs an emergency way to open a cabinet, ask us before ordering.
Will it fit my cabinet door?
It is made for wooden doors. Holes of Φ8 mm and Φ15 mm are drilled through the door to connect the keypad outside to the lock body inside, and the strike plate is fixed to the cabinet frame. Send us the door thickness (and a photo) with your enquiry and we will confirm the fit before you order. For steel cabinets and lockers, see the ID-DCL-G100, which is listed for wood and steel.
What should I order with each lock?
Each box holds the lock set and one RFID card (full contents are in the specs). Batteries are not part of the listed contents, so plan on four AA cells per lock. If several people will use one lock, tell us how many cards you need per lock and we will confirm it in the quotation. For a set of doors, send the quantity, door type and thickness, and the cards you use.
Related products
All RFID Locks →
Keypad & RFID Cipher Cabinet Lock ID-DCL-G100 (IP65)
₹2,499 + GST
Per piece
RFID Cabinet locks ID – Rp – 01
₹4,000 + GST
Per piece

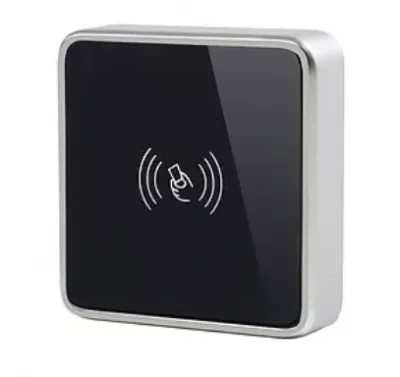

Bluetooth RFID Cabinet Lock ID-BL-01 (13.56 MHz)
₹3,800 + GST
Per piece
RFID Card Cabinet Lock ID-CL-01
₹3,000 + GST
Per piece

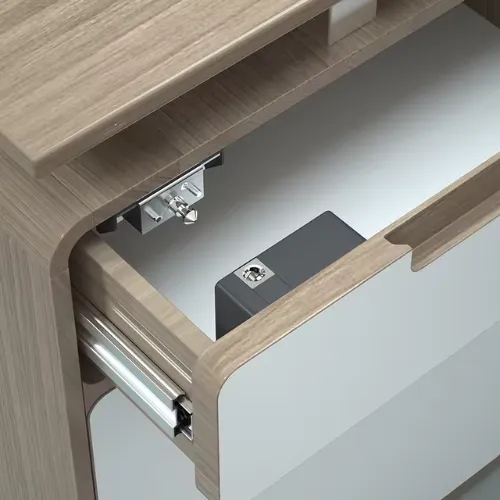

RFID Invisible Cabinet Lock
₹4,800 + GST
Per piece

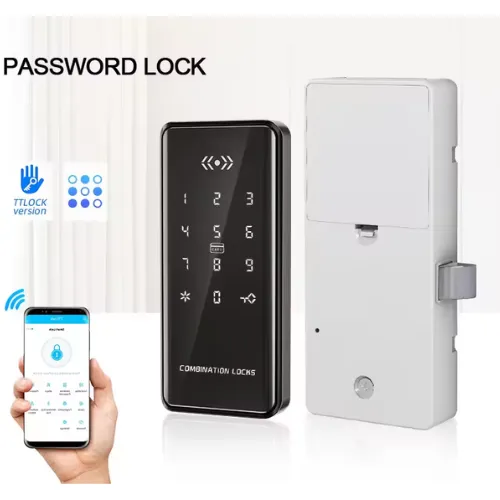

RFID + Password Cabinet Lock ID-RP-02 (125 kHz / 13.56 MHz)
₹6,400 + GST
Per piece

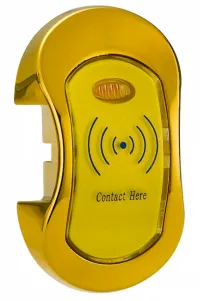

RFID Locker Lock ID-CL-03 for Gym & Pool Lockers
