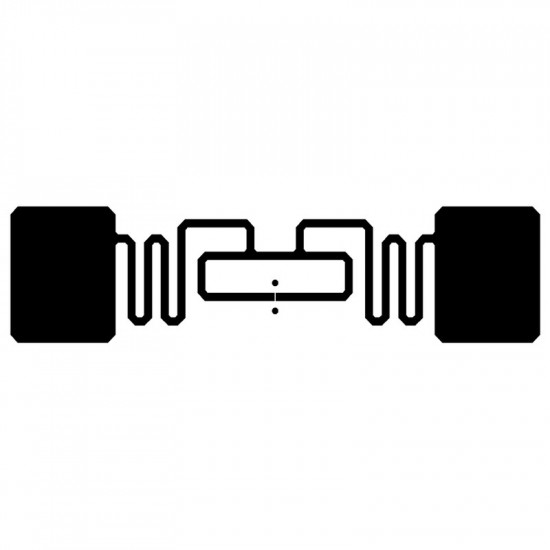

RFID Car Windshield Labels 1770-U8

The ID-1770-U8 is a high-performance UHF RFID inlay engineered for vehicle and heavy-asset identification applications. Built on the UHF chip platform, it delivers reliable read ranges of up to 6 m in demanding real-world environments.

Key Features:

• Compact form factor
• UHF chip — optimised for long-range performance and fast inventory cycles
• Frequency: 860–960 MHz (global UHF RFID standard)
• Read range: up to 6 metres (depending on antenna and environment)
• Flexible, thin substrate suitable for flat and curved surface application
• RoHS-compliant materials; suitable for high-volume industrial deployment

The ID-1770-U8 is compatible with all standard UHF RFID readers and printers. Ideal for warehouse logistics, retail, manufacturing, and field asset management where high-throughput scanning and durability matter.

About the RFID Car Windshield Labels 1770-U8

The RFID Car Windshield Labels 1770-U8 (model ID-1770-U8) is a UHF RFID label made by Identium for the inside of a vehicle windscreen, so cars, staff cabs and fleet trucks are identified automatically at gates, boom barriers and toll lanes. Built on the U8 chip, this rfid car windshield label reads at up to 6 m depending on the antenna and environment, and its flexible, thin substrate follows the curve of laminated glass without lifting. The tamper-evident construction stops a label being peeled off one vehicle and re-used on another, which is what makes it suitable for vehicle access, parking and toll work across India. It is produced for the 865-868 MHz band and works with all standard UHF RFID readers and printers.

Key specifications

Best-fit applications

• Boom-barrier vehicle access at gated residential societies and corporate campuses
• Employee and visitor parking in IT parks and hospitals with hands-free entry
• Toll and weighbridge lanes at cement, steel and mining plants identifying trucks
• Fleet yard in and out logging for logistics operators and school bus contractors
• Airport, port and SEZ permits where a sticker must not move between vehicles

Mounting, encoding and reading notes

Stick the 1770-U8 on the inside of the windscreen, top-centre behind the rear-view mirror or in the lower passenger corner, on glass cleaned with isopropyl alcohol. Keep it away from metallised sun-control films and the heated-defroster grid, which detune UHF antennas; if a film is fitted, use the untinted band near the VIN window. Encode the EPC with the registration or permit ID on an RFID printer before issue, then lock it against rewriting. Mount the gate antenna at windscreen height, angled towards the approach lane, and test reads at site power.

Why buy from Identium

Identium has been building UHF RFID labels in India since 2010, and the 1770-U8 ships tuned for Indian 865-868 MHz lanes while staying usable on ETSI 865-868 MHz systems; a 902-928 MHz build can be quoted for FCC regions. Volume and OEM rates, permit encoding against your vehicle master, and free evaluation samples for one barrier are handled in-house. See the full range of UHF RFID inlays and labels, or use our RFID tag troubleshooting guide if windshield reads are inconsistent.

Frequently asked questions

What is the ID-1770-U8 RFID windshield label used for?

The ID-1770-U8 is a UHF RFID windshield label used for vehicle and heavy-asset identification, such as gate access, campus and factory entry, parking control and fleet movement records. It is applied to the vehicle windscreen and reads up to 6 metres depending on the reader antenna and installation.

What is the read range of this RFID car windshield tag in India?

The ID-1770-U8 windshield label reads up to 6 metres, depending on the reader antenna, mounting position and environment. It works on the 860-960 MHz UHF band, which includes India's 865-868 MHz allocation approved by WPC, so it pairs with standard long-range UHF readers installed at Indian entry gates.

Is a windshield RFID label better than a handheld card for vehicle access?

A windshield RFID label such as the ID-1770-U8 stays fixed to the vehicle and is read automatically as it approaches the gate, so the driver does not need to lower a window or present a card. This keeps vehicle queues moving at busy Indian plant and society entrances.

What is the price of RFID windshield tags in India and can I order in bulk?

Pricing for the ID-1770-U8 UHF RFID windshield label in India depends on the quantity ordered, so check the listed price or ask for a bulk quotation. India RFID Store is a BIS and WPC certified Indian manufacturer offering bulk and OEM pricing, custom printing, samples and pan-India shipping.
