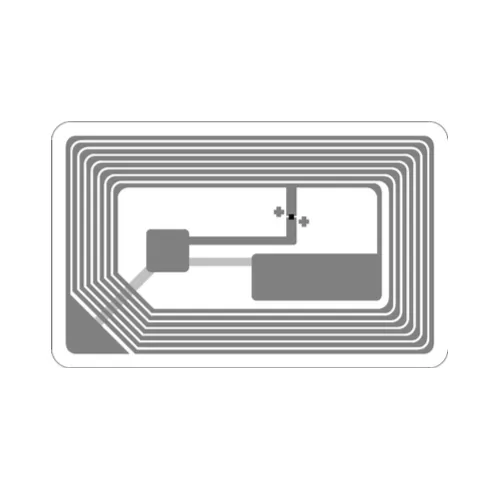

MIFARE Classic 1K RFID Inlay ID-HDL38 (Wet or Dry)
A thin, flexible MIFARE Classic 1K inlay at 13.56 MHz, supplied wet or dry, for card makers, label converters and integrators building prepaid cards, wristbands, baggage tags and HF labels.
- Model:
- ID-HDL38
- Brand:
- Identium
- Chip:
- MIFARE Classic 1K
- Frequency:
- 13.56 MHz (HF)
- Protocol:
- ISO 14443A
- Datasheet:
- PDF · 166 KB
- Listing updated:
₹13
per piece + 18% GST
Min. order 500 piecesThe final price for your quantity is confirmed in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request a sample of this label
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- MIFARE Classic 1K chip, 13.56 MHz HF
- Thin, flexible inlay for laminating into cards, tags and labels
- Available as a wet (self-adhesive) or dry inlay
- Antenna designed for fast response at the reader
- Passive: powered by the reader, no battery
Overview
What the ID-HDL38 MIFARE 1K inlay is for
The ID-HDL38 is the RFID component itself rather than a finished card or tag: a MIFARE Classic 1K chip joined to a 13.56 MHz antenna on a thin, flexible film. Card manufacturers laminate it between PVC sheets, label converters place it under a printed face stock, and integrators build it into wristbands, baggage tags and pallet cards.
Wet or dry: which form to order
Wet inlay
Backed with adhesive on a release liner, so it can be applied straight to a surface or under a printed label.
Dry inlay
No adhesive. Chosen when the inlay will be laminated into PVC cards or sealed inside another material.
Why MIFARE Classic 1K
MIFARE Classic 1K is one of the most widely supported HF chips. Its 1 KB memory is divided into sectors, each protected by its own keys, which is why it is used for prepaid and stored-value cards, membership and access control. Most ISO 14443A card readers can read its UID without setup. HF reads at short range by design, so only the card or tag held at the reader responds.
Need the finished product instead? Browse ready-made HF cards or other HF RFID inlays and labels, and compare chip types in our MIFARE and RFID card guide.
Where the ID-HDL38 is used
- Prepaid cards
- Asset management
- Wristbands
- Baggage tags
- Pallet cards
- Shipping labels
- File management
Specifications
Datasheet (PDF)| Chip | MIFARE Classic 1K |
|---|---|
| Frequency | 13.56 MHz (HF) |
| Protocol | ISO 14443A |
| Memory | 1 KB |
| Form | Wet inlay or dry inlay |
| Type | Passive |
Software, SDK and manuals
1 download for the ID-HDL38.
Identium NFC App Android app
Android · .apk · 6.3 MBDownload
Frequently asked questions
What is the difference between a wet and a dry inlay?
Can the ID-HDL38 be laminated into printed PVC cards?
Will it work with my access control or attendance reader?
Can a mobile phone read a MIFARE Classic 1K inlay?
Related products

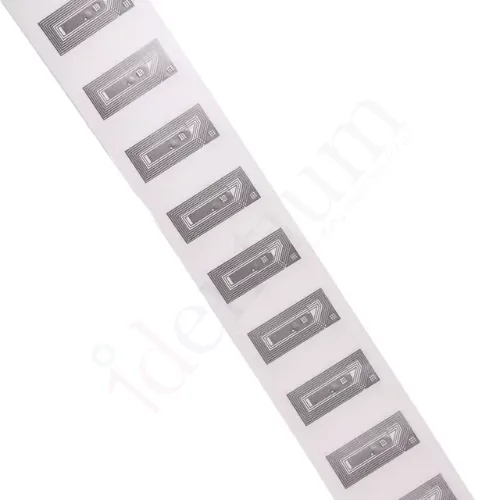

Small HF RFID Tag 30 × 15 mm (13.56 MHz, ISO 14443A)
