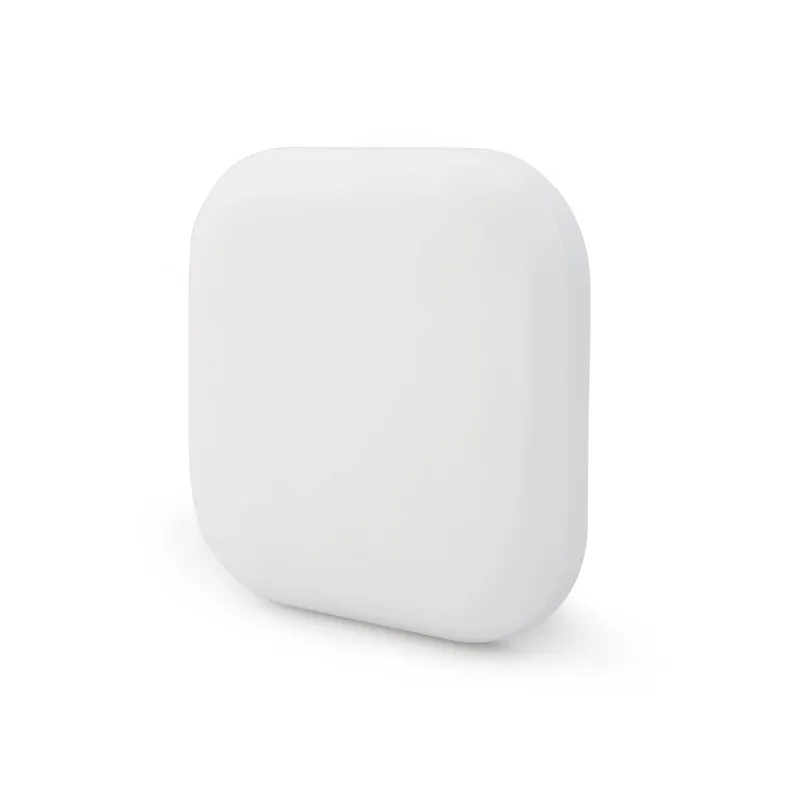

The Identium ID-ANT-8CP-190 delivers full 8 dBi gain from a compact 190 × 190 mm panel — half the physical size of standard 8 dBi antennas. This is the antenna of choice when you need high-gain RFID performance from a space-constrained enclosure: embedded kiosks, self-service terminals, desktop RFID readers, and narrow portal frames where a standard 300mm panel simply does not fit.
Despite the reduced panel size, advanced antenna design maintains the full 8 dBi gain specification through a high-efficiency patch element — delivering read ranges comparable to larger panels in open conditions. The compact form factor opens integration opportunities in OEM product design, automated tool dispensers, locker systems, and RFID-enabled vending machines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ID-ANT-8CP-190 |
| Gain | 8 dBi |
| Frequency | 902–928 MHz |
| Polarisation | Circular (RHCP) |
| Connector | N-Female |
| Dimensions | 190 × 190 × 30 mm (compact) |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ohm |
| Max. Input Power | 2 W |
| IP Rating | IP65 |
| Operating Temp | -20°C to +65°C |
| Weight | 0.5 kg |
Recommended Applications
- OEM product integration: Embed into custom hardware enclosures (tool dispensers, locker doors, kiosk panels) where standard antenna panels are too large.
- RFID-enabled vending / dispensing machines: Mount inside machine panels to read tagged consumables, tools, or parts as they are dispensed or returned.
- Desktop RFID reader upgrades: Replace under-performing desktop reader antennas with a 190mm compact panel for improved multi-tag read performance on desktop.
- Narrow portal frames: Fit into 200mm-wide portal uprights where standard 300mm antennas cannot be accommodated.
- Stock: In Stock
- Model: ID-ANT-8CP-190
- Weight: 0.05kg
- SKU: ID-ANT-8CP-190
