Industrial RFID Printer iX4RT with Touch Screen (203 / 300 / 600 dpi)
An industrial RFID printer and encoder with a metal frame and a 4.3-inch touch screen. It prints, encodes and verifies UHF labels in one pass, handles flexible on-metal labels, and comes in 203, 300 and 600 dpi versions.
- Model:
- iX4RT
- Brand:
- Identium
- Interface:
- USB, Ethernet (LAN)
- Datasheet:
- PDF · 244 KB
- Listing updated:
₹2,45,999
per piece + 18% GST
₹2,90,278.82 incl. GST
Min. order 1 pieceBuy online and pay by NEFT or UPI, or request a quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Sold by India RFID Store, the online catalogue of Identium Tech Solutions Pvt Ltd, an RFID manufacturer in New Delhi, India, in business since 2010.
Key features
- Prints, encodes and verifies UHF RFID labels in one pass (EPC Gen2 / ISO 18000-6C)
- 203, 300 or 600 dpi; up to 8 ips at 203 and 300 dpi
- 4.3-inch IPS touch screen, five keys and three status lights
- Flexible on-metal labels and plain labels; locates labels as short as 4 mm
- Graphical RFID calibration and one-touch media calibration
- USB and Ethernet; Labelsoft label software and SDKs for C#, Java, VC and HTML5
Overview
An industrial printer that encodes as it prints

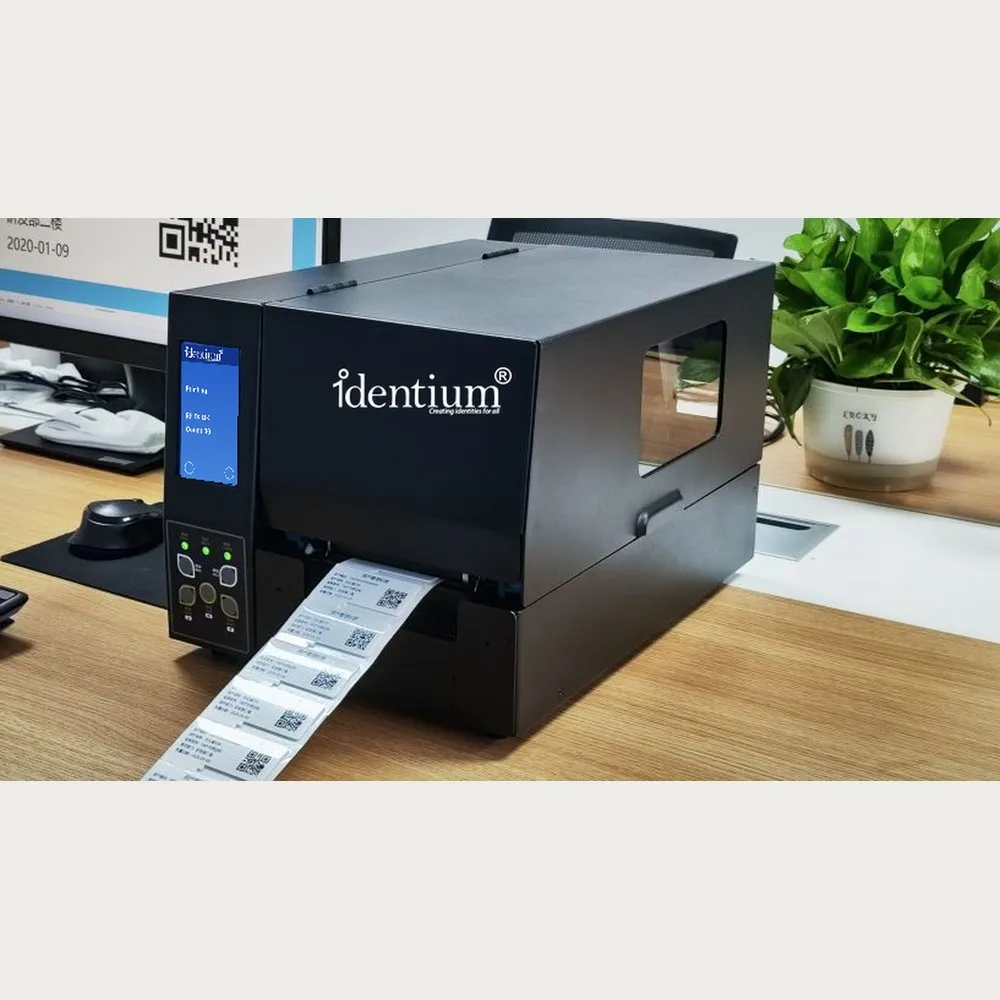

The iX4RT prints a label and writes its UHF RFID chip in the same pass, then verifies the write, so every label leaving the printer carries matching print and EPC data. A metal frame, built-in power supply and 4.3-inch touch screen make it a printer for production lines and busy labelling stations rather than an office desk.
Choose the resolution for your labels
- 203 dpi: carton, pallet and warehouse labels at up to 8 ips, and the longest print length (4,000 mm).
- 300 dpi: sharper text and small barcodes at the same 8 ips.
- 600 dpi: very small labels, fine 2D codes and jewellery or electronics tags, at up to 3 ips.
On-metal labels and short tags
Both media sensors move, so the printer finds labels with gaps, perforations or black marks, and locates labels as short as 4 mm. It handles flexible on-metal labels as well as standard UHF labels and plain labels, which suits asset tagging with on-metal RFID tags. A graphical calibration tool shows where the tag sits and the strength of the RFID signal, and media calibration takes one touch.
Software and integration
Labelsoft designs labels, pulls data from your files and prints and encodes them, and the printer can be used without installing a driver. Developers can call it from their own software with SDKs for VC, C#, Java and HTML5. For lighter volumes, compare the IT4RL desktop RFID printer, or the iX4R industrial printer for speeds up to 14 ips.
Where the iX4RT is used
- Warehouse and carton labelling
- Asset tagging with on-metal labels
- Retail and apparel tags
- Library and file labels
- Manufacturing WIP labels
Specifications
Datasheet (PDF)| Model | iX4RT (iX4RT-203, iX4RT-300, iX4RT-600) |
|---|---|
| Type | Industrial RFID printer and encoder |
| Printing method | Direct thermal and thermal transfer |
| Resolution | 203 dpi (8 dots/mm), 300 dpi (11.8 dots/mm) or 600 dpi (24 dots/mm) |
| Print speed | Up to 8 ips (203.2 mm/s) at 203 and 300 dpi; up to 3 ips (76.2 mm/s) at 600 dpi |
| Print width | Up to 108 mm at 203 dpi; 105.6 mm at 300 and 600 dpi |
| Print length | Up to 4,000 mm at 203 dpi; 2,000 mm at 300 and 600 dpi |
| RFID | UHF reader/encoder, EPC Gen2 / ISO 18000-6C; HF/NFC version on request |
| Media | Roll-fed, die-cut, continuous, fan-fold, tags and tickets; 20–118 mm wide; 0.06–1.5 mm thick including liner; flexible on-metal labels supported |
| Media roll | Up to 127 mm outer diameter on a 25.4 mm (1-inch) core or larger |
| Ribbon | Wax, wax/resin or resin; up to 110 mm wide and 300 m long, 70 mm max. outer diameter, 1-inch or 0.5-inch core |
| Media sensor | Adjustable reflective and transmissive |
| Memory | 32 MB flash, 16 MB SDRAM |
| Barcodes | 1D: Code 39, Code 93, Code 128, Codabar, EAN-8/13/128, Interleaved 2 of 5, UCC-128, UPC A/E; 2D: Data Matrix, MaxiCode, PDF417, QR |
| Interface | USB, Ethernet (LAN) |
| Display and controls | 4.3-inch IPS touch screen (480 × 800), five keys, three status lights |
| Software | Labelsoft label design, encoding and printing software for Windows; SDKs for VC, C#, Java and HTML5 |
| Power | Built-in supply, 85–264 V AC, 47–63 Hz, 150 W |
| Weight | 12.5 kg |
| Dimensions | 299 × 410 × 270 mm (W × D × H) |
| Operating environment | 0–40 °C, 5–85 % RH non-condensing |
| Storage environment | −40 to +60 °C, 5–85 % RH non-condensing |
| Options | Cutter, peeler |
Frequently asked questions
Which resolution should I choose?
Can it print on-metal RFID labels?
Does it verify each RFID write?
How does it connect?
