Item | Description | |
Manufacture / Chip | Alien Higgs 10 | |
Base Material | PET(50um) | |
Antenna | Etched Aluminum (10um) + PET (50um) | |
Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 | |
Memory | EPC | 128 Bits |
TID | 96 Bits | |
Password | Access - 32Bits，Kill - 32Bits | |
User | 32 Bits | |
Frequency | 860~960MHz | |
Operating Mode | Passive | |
IC Life | 200,000 Programming cycles, 50years data | |
ESD Voltage Immunity | Max 2000V | |

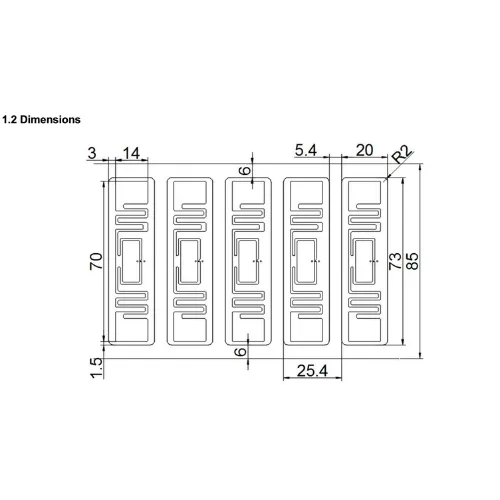

No. | Item | Parameters mm |
1 | Inlay Length | 14±0.20 |
2 | Inlay Width | 70±0.20 |
3 | Inlay right to label right | 3.0±1.0 |
4 | Inlay left to label left | 3.0±1.0 |
5 | Label Length | 20±0.5 |
6 | Label Width | 73±0.5 |
7 | Label Corner Radius | R=2±0.50 |
8 | Label Edge to Liner Edge (Top) | 6±1.0 |
9 | Label Edge to Liner Edge (Bottom) | 6±1.0 |
10 | Label Pitch | 25.4±0.5 |
11 | Label Gap | 5.4±0.5 |
12 | Liner Width | 85±1.00 |
13 | Core ID | 3inch(76.20±0.50) |
14 | Roll OD | ≦153 |
15 | Inlay Top to Label Top | 1.5±1.0 |
16 | Inlay Edge to Label Edge (Bottom) | 1.5±1.0 |
17 | Antenna Length | 14±0.20 |
18 | Antenna Width | 70±0.20 |
Frequently asked questions
What size is the ID 73x21-H10 UHF RFID label?
The ID 73x21-H10 UHF RFID label has a 73 x 20 mm label face with a 70 x 14 mm inlay, supplied on rolls with a 3 inch core. The long narrow shape suits carton labels, shelf labels, file labels and asset tags in Indian warehouses and offices.
Which chip and memory does the 73x21-H10 label use?
The ID 73x21-H10 uses the Alien Higgs 10 chip with 128 bits of EPC memory, 96 bits of TID and 32 bits of user memory, plus 32-bit access and kill passwords. It follows ISO/IEC 18000-6C EPC Class 1 Gen 2 and is passive across 860-960 MHz.
Is this UHF RFID label suitable for use in India?
Yes. The ID 73x21-H10 label works over 860-960 MHz, which covers India's 865-867 MHz UHF band approved by WPC and licence-free within the notified power limits. It is built on PET with an etched aluminium antenna and rated for 200,000 programming cycles with 50 years data retention.
Can I buy these UHF RFID labels in bulk with custom encoding?
Yes, the ID 73x21-H10 UHF label is supplied in rolls and can be ordered in bulk with custom printing and pre-encoded EPC numbers. Pricing depends on quantity, so check the listed price or request a bulk quote from India RFID Store, a BIS and WPC certified Indian manufacturer.
Related guides & resources
- Browse all UHF RFID Inlays & Labels
- Read: RFID tag price guide (India)
- Read: RFID inventory accuracy in retail
- Bulk & OEM pricing: bulk & OEM pricing
- Stock: In Stock
- Model: ID 73x21-H10
- Weight: 0.05kg
