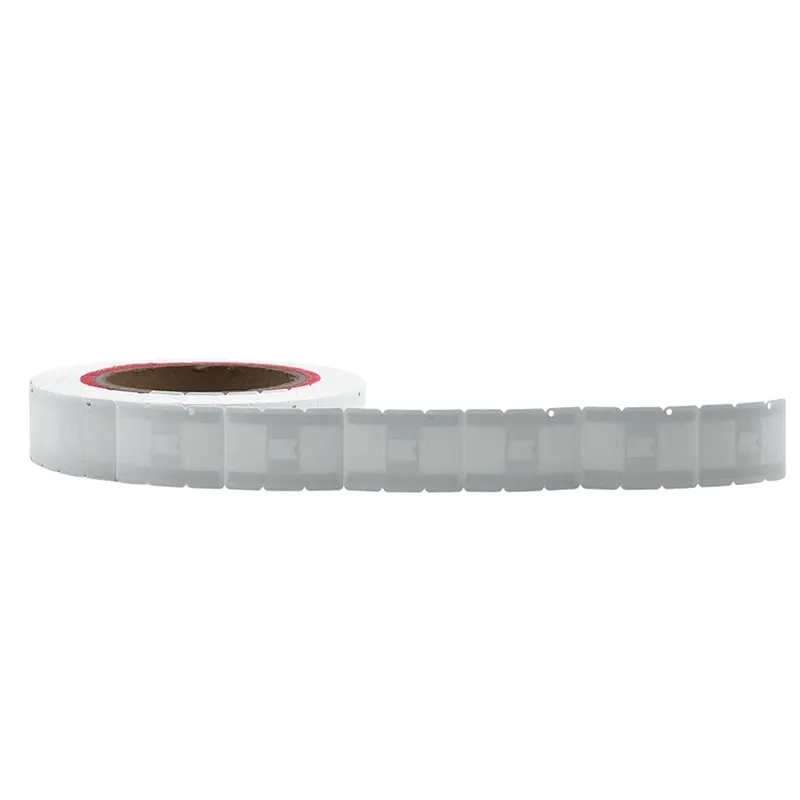

UHF RFID Jewellery Label ID-43 (NXP UCODE 9, 43.18 × 30 mm)
A 43.18 × 30 mm UHF RFID jewellery label on the NXP UCODE 9 chip, for jewellers who want to count trays, showcases and lockers with a reader instead of checking each piece by hand.
₹8
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 172 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- NXP UCODE 9 chip, EPC Gen2 / ISO 18000-6C
- Read range up to 8 m, depending on antenna and environment
- 43.18 × 30 mm label for jewellery tickets and tags
- Prints item code, weight and barcode on UHF RFID printers
- Responds across 860–960 MHz, covering India's 865–868 MHz band
- Thin, flexible substrate; RoHS-compliant materials
- Chip
- NXP UCODE 9
- Protocol
- EPC Gen2 / ISO 18000-6C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range
- Up to 8 m (depends on reader, antenna and environment)
Overview
NXP UCODE 9 jewellery label for tray and showroom counts
The ID-43 is a UHF RFID label for jewellery, built on the NXP UCODE 9 chip and rated for up to 8 m read range depending on the reader and setting. In a showroom that figure is less about distance than headroom: it helps when dozens of tagged pieces sit close together in a tray, a showcase or a locker drawer and must all answer one reader sweep.
How jewellers use it
- Opening and closing counts of every tray and showcase
- Reconciling pieces sent out for exhibitions, approvals or repair
- Linking each tag number to weight, purity and design code in your jewellery software
Fitting and printing
Attach the label to the price ticket or tag loop so the antenna stays flat and is not pressed against a heavy gold or silver body, which detunes UHF tags. Item code, weight and a barcode can be printed on a UHF RFID printer while the EPC is written. For counter reading, pair the labels with an RFID smart tray or a desktop reader. Other shapes are listed under RFID jewellery tags, and the jewellery inventory guide covers the full workflow.
Typical applications
- Showroom stock counts
- Tray and showcase audits
- Locker reconciliation
- Exhibition stock
- Workshop transfers
Specifications
Datasheet (PDF)| Model | ID-43 |
|---|---|
| Type | UHF RFID jewellery label |
| Chip | NXP UCODE 9 |
| Protocol | EPC Gen2 / ISO 18000-6C |
| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
| Read range | Up to 8 m (depends on reader, antenna and environment) |
| Dimensions | 43.18 × 30 mm |
| Material | Flexible, thin substrate; RoHS-compliant |
| Compatible with | Standard UHF RFID readers and printers |
Frequently asked questions
What is the read range of the ID-43 jewellery label?
Can item code, weight and price be printed on it?
Does gold or silver affect reading?
Which reader should a jewellery shop use?
