UHF Audio Jack RFID Reader IDTS-UAR
A 35 g mini UHF RFID reader that plugs into the 3.5 mm headphone jack of an Android or iOS phone, for short-range tag checks of up to 50 cm during field rounds and surveys.
₹12,000
per piece + 18% GST
₹14,160 incl. GST
Minimum order: 1 piece · buy online and pay by NEFT or UPI, or request a quote
View datasheet PDF · 168 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Key features
- Connects through a standard 3.5 mm headphone jack
- Works with Android, iOS and other smart device platforms
- Reads ISO 18000-6C UHF tags at up to 50 cm, depending on tag size
- 550 mAh battery: about 3 h continuous work or 30,000+ reads
- 42 × 48 × 15 mm and 35 g in an ABS + PC housing
- Charges over USB (5 V, 0.5 A) in about 2 hours
- Protocol
- ISO 18000-6C UHF
- Interface
- 3.5 mm audio jack (standard headphone socket)
- Read range
- Up to 50 cm (depends on tag size)
- Operating temperature
- −20 to +60 °C
Overview
What the IDTS-UAR audio jack UHF reader does

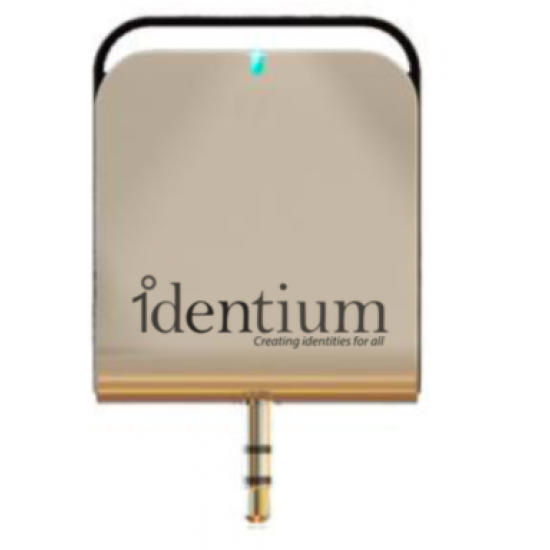

The IDTS-UAR is a 42 × 48 mm mini UHF RFID reader that plugs into a phone's 3.5 mm headphone socket. The phone runs the app and shows the result; the reader handles the radio side. It was designed to make UHF reading cheap and portable enough for everyday field work, where carrying a full handheld terminal would be overkill.
Check your phone first
Because the reader talks to the phone through the audio jack, the handset must have a 3.5 mm headphone socket, and many recent phones no longer do. If your team's phones only have a USB-C port, the UCR10 Type-C portable reader is the closer fit. If they would rather not plug anything in, look at the Bluetooth models in our RFID handheld reader range.
Short range by design
With a read distance of up to 50 cm, depending on tag size, the UAR is for checking a tag you can point at, not for counting a shelf from across the aisle. That suits spot checks, verification rounds and survey work: confirm an asset tag, read its EPC or user memory, and move on.
One charge gives about 3 hours of continuous work or more than 30,000 reads, and a full recharge over USB (5 V, 0.5 A) takes about 2 hours. The housing is ABS and PC engineering plastic, and the reader's working temperature range is −20 to +60 °C.
Reading the status light
| Light | Meaning |
|---|---|
| Green, steady | Working normally |
| Green, flashing | Tag EPC or user memory read |
| Green, slow blink | Low battery, charge soon |
| Green, fast flashing | Battery too low to read |
| Red, steady | Charging |
| Red goes out | Charging complete |
| No light | Device fault |
Typical applications
- Tag spot checks
- Field verification rounds
- Site surveys
- Asset tag checks
Specifications
Datasheet (PDF)| Protocol | ISO 18000-6C UHF |
|---|---|
| Interface | 3.5 mm audio jack (standard headphone socket) |
| Compatible with | iOS, Android and other smart device platforms with a 3.5 mm jack |
| Read range | Up to 50 cm (depends on tag size) |
| Working time | About 3 h continuous; over 30,000 reads per charge |
| Battery | 550 mAh rechargeable |
| Charging | USB 5 V / 0.5 A, about 2 h |
| Material | ABS + PC engineering plastic |
| Dimensions | 42 × 48 × 15 mm |
| Weight | 35 g |
| Operating temperature | −20 to +60 °C |
| Indicator | Status light: green for working, reads and battery level; red while charging |
