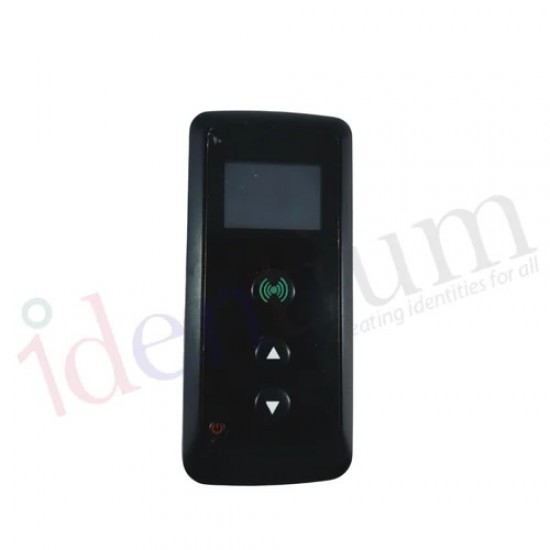

UHF BLE MICRO READER UBR12

Product introduction


ID – UBR12 reader is a super small UHF RFID read and write device that can be long time standby. Beautiful appearance, compact size, easy to take and with 0.95` true color, OLED scree. It can display the number of the tag, the operation interface for user-friendly, user operation more convenient, intuitive. It can store the tag data offline, upload tag data via Bluetooth. The reader can support the protocol of EPC C1 G2/ISO 18000-6C. The target market is for the occasions which need of portable, low cost, mobile data acquisition such as Anti-fake, Logistics, Equipment inspection, etc..

 Features

•   Working frequency: 840~930MHz
• （According to the demands, FHSS）
•    Protocol: EPC C1 GEN2/ ISO 18000-6C
•    Bluetooth: 3.0 EDR+4.0 BLE dual mode
•  It can achieve 100meters over the remote communication under the open environment and BLE equipment
•    Storage: Store 100tag data offline, upload via bluetooth
•    USB: Micro USB, the virtual U disk device, store upgrade file
•    Firmware upgrade：Firmware upgrade offline via update and upgrade file
•    Working voltage: Lithium 3.7V/780mAh, charge by general micro USB cable
•   Working time: Work more than 3hours for continuous reading tag
•   Operating temperature: 0℃~55℃
•   Storage temperature: -10℃~70℃
•   Outline size: 88mm*39mm*16mm
•   Keys: 4functional key
•   Distance of read and write tags: Alien 9662 tag read distance is about 10~15cm
•  Provide Bluetooth API and demo program under PC and Android, IOS not support
•   Display: 0.95` true color, OLED screen

Frequently asked questions

What is the UBR12 BLE micro RFID reader used for?

The UBR12 is a pocket-sized UHF RFID read and write device used for portable, low-cost mobile data capture in applications such as anti-counterfeiting, logistics and equipment inspection. It has a 0.95 inch true colour OLED screen that displays tag numbers through a simple operating interface, and it can stand by for long periods.

Does the UBR12 micro reader work with Indian UHF tags at 865-867 MHz?

Yes. The UBR12 micro reader works across 840 to 930 MHz with frequency hopping, which covers the 865-867 MHz UHF RFID band approved by WPC for India and licence-free within notified power limits. It supports EPC C1 Gen 2 / ISO 18000-6C tags used by most Indian UHF systems.

How does the UBR12 Bluetooth RFID reader send data to a phone?

The UBR12 UHF reader stores tag data offline and uploads it over Bluetooth 3.0 EDR plus 4.0 BLE dual mode. In open environments the Bluetooth link can reach up to 100 metres, so the reader can be carried around while the paired phone or laptop stays at a fixed point.

Can I order the UBR12 micro RFID reader in bulk in India?

Yes, the UBR12 UHF micro reader is available in bulk and on OEM terms from India RFID Store, a BIS and WPC certified Indian RFID manufacturer. Pricing depends on quantity, so check the listed price or request a bulk quote; samples and pan-India shipping are available.
