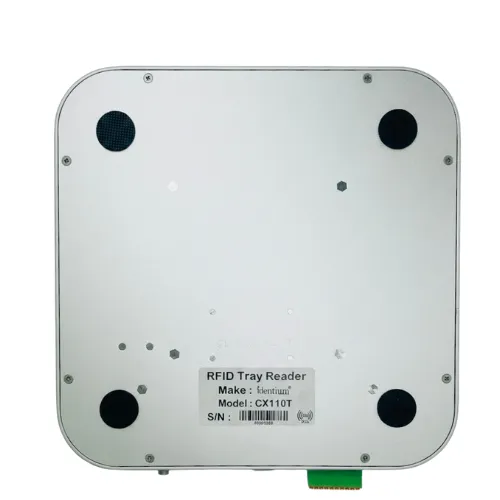

RFID Smart Tray CX110T

The RFID Smart Tray is a high-performance, compact UHF RFID reader designed for desktop and countertop automation. Featuring the industry-leading Impinj E310 chipset, it offers superior sensitivity and read rates, making it ideal for retail, jewelry management, and document tracking.

---

Key Features

·       Superior Chipset: Powered by the Impinj E310 for high-accuracy, fast tag reading.

·       Industrial Design: Beautiful Aluminum Die Cast construction that is both durable and elegant.

·       Stray-Read Prevention: Specialized antenna design ensures tags are only read within the tray area, preventing accidental reads of nearby items.

·       Compact Form Factor: Optimized size perfect for any workspace or integration into existing furniture.

·       Real-time Feedback: Integrated LED indicators (Red for Power, Green for Read) and a buzzer for instant status confirmation.

---







Applications:

---

·  Retail Point of Sale: Quick and accurate checkout for high-value items.

·  Inventory Audit: Rapid scanning of items on a desktop or workstation.

·  Asset Tracking: Secure tracking of documents or tools in office environments.

·  Smart Jewelry Trays: Real-time stock visibility for showrooms.



Product technical parameter

Model number	CX110T – POE, RS232, USB, 3 x Relay, 1000 tag storage CX110B – Bluetooth,RJ45, RS232, USB, 3 x Relay, 1000 tag storage CX110TW - POE, RS232, USB, 3 x Relay, 1000 tag storage ,WIFI
Frequency	865-867MHz(INDIA standard, can be customized on request)
Protocol	ISO18000-6C(EPC GEN2)
RFIC	CX110T – Impinj E310 : Read Speed 250 tags/s CX110E– Impinj E710 : Read Speed 1000 tags/s
Built-in antenna	Near-field/Short-range optimized to avoid stray reads
Work mode	Active , Answer
RF power	0-30dbm(adjustable)
Read distance	1- 3 m(depends on tag)
Reading Clue	Standard : Buzzer
Communication Interface	RS232/USB/WG26/RELAY/POE/WIFI,Bluetooth(optional)
Power supply	POE / 9-24V | USB – 5V
Operating Temp	-10~+55℃
Storage Temp	-20~+75℃
Reader Size	260*260*35mm
Reader weight	1.3kg
Packing Size	400*300*100mm
Package Size	3kg
