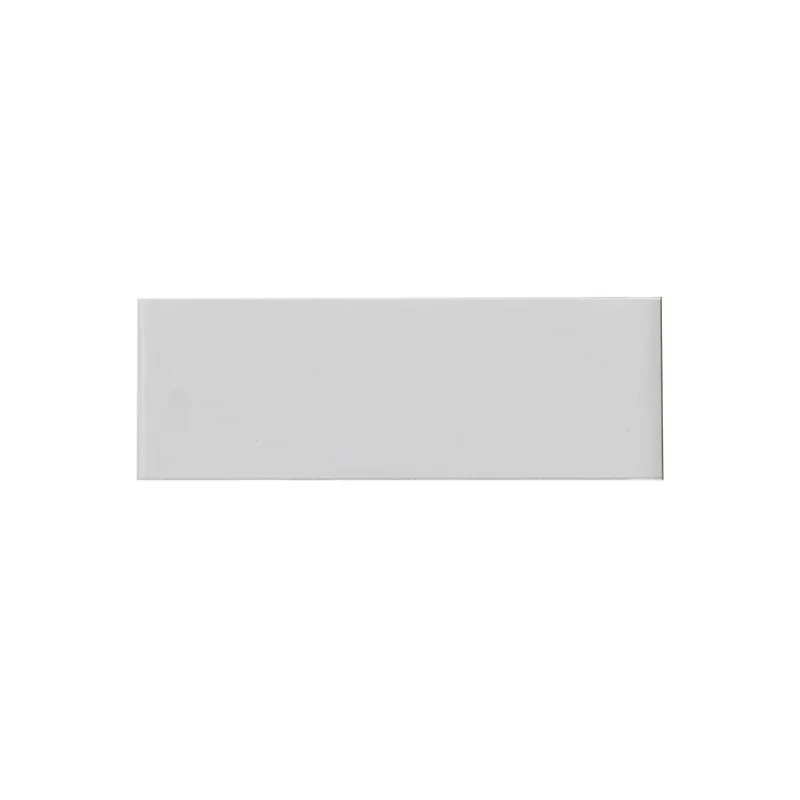

UHF On-Metal RFID Label ID-5015-U8 (50 × 15 mm, Slim Strip)
A 50 × 15 mm slim-strip UHF on-metal label for long, narrow metal surfaces such as pallet-rack rails, shelf edges, cabinet frames and roll-cage uprights.
₹65
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 167 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 50 × 15 mm strip fits rails, edges and nameplate areas
- Reads 2–4 m bonded directly to steel or aluminium
- Anti-metal foam spacer with printable PET face
- Room for a 1D or 2D barcode plus asset number
- Metal-grade industrial acrylic adhesive; −20 °C to +80 °C
- Available on rolls for print-and-apply
- Chip
- U8
- Frequency
- 865–868 MHz (India)
- Protocol
- EPC Gen2 / ISO 18000-6C
- Read range
- 2–4 m on metal
Overview
Slim on-metal RFID label for racking and shelf rails
The ID-5015-U8 is shaped for surfaces that are long but short in height. Its 15 mm height fits within the front rail of steel pallet racking, a shelf edge or a cabinet nameplate area, while the 50 mm length gives the antenna room to reach 2–4 m when bonded directly to steel or aluminium.
Location tagging in the warehouse
Rack-rail labels turn each bay or level into a readable location. A vehicle-mounted reader on a forklift, or an operator with a handheld, reads the location label together with the pallet tag, so the WMS records where stock was put away without a separate barcode scan. The warehouse RFID implementation guide shows how location tags fit into a rollout.
Other narrow metal surfaces
- Top edges of filing cabinets and lockers, without protruding
- Steel cable trays and trunking
- Side uprights of roll cages and metal pallets
- Slim stainless-steel instrument trays
The strip leaves enough print area for a 1D or 2D barcode and an asset number, and it comes on rolls for print-and-apply lines using a UHF RFID printer.
Typical applications
- Rack location tags
- Shelf edges
- Filing cabinets and lockers
- Cable trays and trunking
- Roll cages and pallets
- Instrument trays
Specifications
Datasheet (PDF)| Dimensions | 50 × 15 mm (slim strip) |
|---|---|
| Chip | U8 |
| Frequency | 865–868 MHz (India) |
| Protocol | EPC Gen2 / ISO 18000-6C |
| Read range | 2–4 m on metal |
| Material | Anti-metal foam spacer, printable PET face |
| Mounting | Metal-grade industrial acrylic adhesive |
| Operating temperature | −20 °C to +80 °C |
| Packaging | Rolls for print-and-apply |
| Compatible with | EPC Gen2 UHF readers; thermal transfer RFID printers |
Frequently asked questions
What read range does the ID-5015-U8 give on steel?
Where does a 50 × 15 mm on-metal label fit best?
Does it work with RFID readers used in India?
Can it run on a print-and-apply line?
