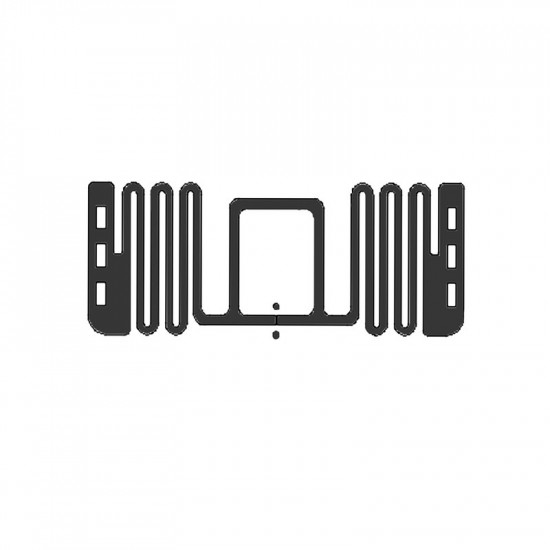

UHF RFID Label ID-4025 (40 × 25 mm, FM13UF0051E)
A 40 × 25 mm printable UHF RFID label on the Fudan FM13UF0051E chip, sized like a standard address label for carton, bin and pallet tagging in warehouses and retail back rooms.
₹7
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Fudan FM13UF0051E chip: 128-bit EPC, 32-bit user memory
- Up to 6 m read range in free air
- 40 × 25 mm, the size of a standard address label
- Printable white PET face for barcode and text
- Rolls for thermal transfer or direct thermal printers
- Operates from −25 °C to +70 °C
- Chip
- Fudan FM13UF0051E
- Frequency
- 865–868 MHz (India UHF band)
- Protocol
- EPC Gen2 / ISO 18000-6C
- Read range
- Up to 6 m (free air)
Overview
40 × 25 mm UHF RFID label for cartons and bins
The ID-4025 is a general-purpose UHF RFID label on the Fudan FM13UF0051E chip. At 40 × 25 mm it matches a common address-label size, so it runs through most thermal transfer label printers and label dispensers already on a packing line. The footprint leaves room for a clear barcode beside the RFID inlay and still fits a carton corner or pallet leg without covering other labels.
What it is used for
- Print-and-apply at packing: serialised FMCG and pharmaceutical cartons.
- Fixed locations: bin and shelf labels linked to a WMS.
- Outbound checks: pallet and carton reads at dispatch.
- Retail and e-commerce: back-room replenishment and parcel sortation.
Memory and encoding
The 128-bit EPC holds a serialised item number or a GS1 code, and 32 bits of user memory take a short extra value. Order plain labels, or labels printed with your barcode, serial number, logo or WMS template. For EPC numbering conventions, see the GS1 SGTIN-96 encoding guide.
The ID-4025 is specified as a PET label for cartons, bins and pallets. For steel or aluminium assets, choose a foam-backed on-metal label such as the ID-4025-U8, which has the same 40 × 25 mm footprint.
Typical applications
- FMCG carton tracking
- Pharma carton tracking
- Warehouse bin labels
- Pallet serialisation
- Retail back-room stock
- Parcel dispatch checks
Specifications
Datasheet (PDF)| Dimensions | 40 × 25 mm |
|---|---|
| Chip | Fudan FM13UF0051E |
| Memory | 128-bit EPC, 32-bit user memory |
| Frequency | 865–868 MHz (India UHF band) |
| Protocol | EPC Gen2 / ISO 18000-6C |
| Read range | Up to 6 m (free air) |
| Material | PET, printable white face; RoHS-compliant |
| Operating temperature | −25 °C to +70 °C |
| Packaging | Rolls for thermal transfer or direct thermal printers |
| Compatible with | EPC Gen2 UHF fixed and handheld readers |
Frequently asked questions
What is the read range of the ID-4025?
How much memory does it have?
Can I print it on my existing label printer?
Can the ID-4025 be stuck on metal?
Which readers can read it?
