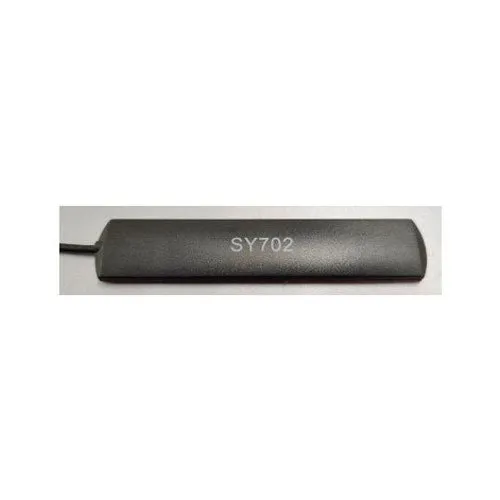

Low-Gain UHF RFID Strip Antenna SY702 (110 × 23 mm)
A slim 110 × 23 mm low-gain UHF RFID antenna with a read range of up to 1 m, for item-level inventory tracking inside shelves, cabinets, drawers and other confined spaces.
₹1,200
per piece + 18% GST
₹1,416 incl. GST
Minimum order: 1 piece · buy online and pay by NEFT or UPI, or request a quote
View datasheet PDF · 159 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Buy online, pay by NEFT or UPI · in-stock items are dispatched the same day after payment · shipping ₹300 per kg + GST
Key features
- Low-gain UHF design keeps the read zone small and contained
- Read range up to 1 m
- Slim rectangular strip, 110 × 23 mm
- Narrow enough for shelf edges, trays and enclosures
- Made for inventory tracking in confined areas
- Frequency
- UHF
- Read range
- Up to 1 m
Overview
What the SY702 low-gain UHF strip antenna does
The SY702 does the opposite job of a gate or dock-door panel. Instead of pushing the reader's energy several metres, its low gain keeps the read zone to about 1 m, so the reader sees the tags on one shelf or in one drawer rather than everything in the room.
The rectangular strip measures 110 × 23 mm. That is narrow enough to run along a shelf lip, sit under a display tray or fit inside a cabinet or enclosure.
Where a strip antenna makes sense
- Smart shelves and cabinets: one antenna per shelf or compartment tells your software which tagged items are present.
- Drawers and bins: short-range reads for tools, files or spares kept in fixed places.
- Retail and library fixtures: counting the tagged items on a single display or shelf.
Planning a shelf or cabinet installation
Each strip connects to an antenna port on a UHF RFID reader, so the number of shelves or compartments you want to tell apart decides how many antennas and ports you need. Metal shelving and liquids affect UHF reads, so trial the layout with your own tags and fixtures first.
For help matching antenna gain to read zone, see our RFID antenna guide, or compare options in the RFID antenna range.
Typical applications
- Smart shelves
- Cabinet inventory
- Drawer and bin tracking
- Retail display fixtures
- Library shelves
Specifications
Datasheet (PDF)| Antenna type | Low-gain UHF RFID strip antenna |
|---|---|
| Frequency | UHF |
| Read range | Up to 1 m |
| Dimensions | 110 × 23 mm |
| Shape | Rectangular strip |
Frequently asked questions
What is the read range of the SY702 strip antenna?
Up to 1 m. The short range is deliberate: low gain keeps reads inside the shelf, cabinet or drawer the antenna is fitted to, so tags elsewhere in the room are not picked up. Actual range also depends on the reader's power setting and the tags used.
How big is the SY702?
It is a rectangular strip measuring 110 × 23 mm, slim enough to mount along a shelf edge, under a tray or inside an enclosure. The strip form suits item-level inventory rather than long-range gate reading.
Which reader do I need with this antenna?
The SY702 needs a UHF RFID reader with an external antenna port, such as one of our 4-port UHF readers. Tell us your reader model when you request a quote so we can confirm the connector and cable.
Does it work on India's UHF RFID band?
UHF RFID systems in India operate at 865–868 MHz. The SY702 is listed as a UHF antenna without a narrower band figure, so confirm the band against your reader when you request a quote.
