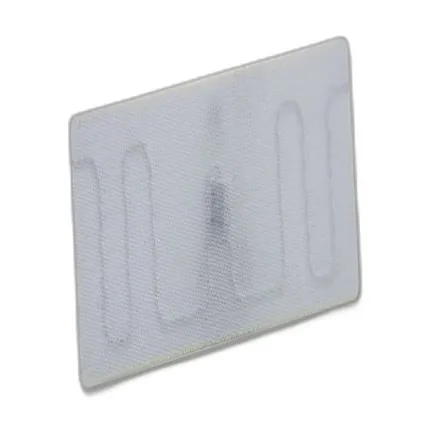

Sew-In UHF RFID Laundry Tag ID-L6020 (60 × 20 mm)
A 60 × 20 mm sew-in UHF RFID laundry tag on the NXP UCODE 8 chip, stitched into bed sheets, duvet covers, bath sheets and other large linen that is counted in bulk.
₹35
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 170 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Wide 60 × 20 mm sew-in tag for large flat linen
- NXP UCODE 8 chip, EPC Gen2 / ISO 18000-6C
- Up to 8 m read range for trolley and cage counts, reader dependent
- Stitched into a seam or hem; flexible, thin substrate
- Iron-on version ID-L6020-I available in the same size (UCODE 9xe chip)
- Chip
- NXP UCODE 8
- Protocol
- EPC Class 1 Gen2 / ISO 18000-6C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range
- Up to 8 m (depends on reader, antenna and environment)
Overview
ID-L6020 sew-in UHF RFID laundry tag with NXP UCODE 8
The ID-L6020 is a 60 × 20 mm stitched tag and the only ID-L laundry tag built on the NXP UCODE 8 chip. It is aimed at large flat linen and heavy items such as bed sheets, duvet covers, bath sheets and blankets, which are usually counted by the cage or trolley rather than piece by piece.
Chip and size
UCODE 8 and UCODE 9xe are both EPC Gen2 / ISO 18000-6C chips, so the ID-L6020 reads on the same UHF readers as the rest of the series and can share one linen database. A larger tag antenna generally helps when items are folded into thick stacks. Rated read range is up to 8 m, depending on reader, antenna and environment.
Sewn or iron-on?
Stitching suits towelling, blankets and textured weaves because it does not rely on a heat bond. For smooth sheeting you would rather heat-press, the ID-L6020-I comes in the same size with a UCODE 9xe chip. To plan bulk reading at the laundry door, see our gate, portal and tunnel reader guide.
Typical applications
- Bed sheets
- Duvet covers
- Bath sheets
- Blankets
- Hospital linen
- Bulk trolley counts
Specifications
Datasheet (PDF)| Model | ID-L6020 |
|---|---|
| Dimensions | 60 × 20 mm |
| Chip | NXP UCODE 8 |
| Protocol | EPC Class 1 Gen2 / ISO 18000-6C |
| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
| Read range | Up to 8 m (depends on reader, antenna and environment) |
| Mounting | Sewn in (stitched into hem or seam) |
| Material | Flexible, thin substrate; RoHS-compliant materials |
| Compatible with | Standard UHF RFID readers and printers |
