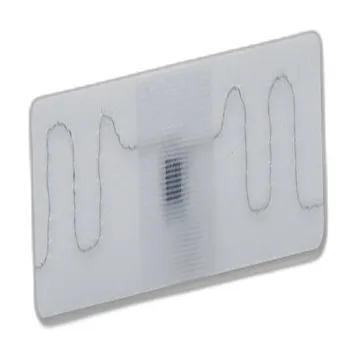

Iron-On UHF RFID Laundry Tag ID-L5815-I (58 × 15 mm)
A 58 × 15 mm UHF RFID laundry tag that is heat-applied instead of sewn, built on the NXP UCODE 9xe chip. For laundries and uniform programmes that want to tag garments and flat linen without a sewing step.
₹35
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 166 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Iron-on: heat-applied to the fabric, no stitching needed
- 58 × 15 mm tag on the NXP UCODE 9xe chip, EPC Gen2 / ISO 18000-6C
- Reads up to 8 m with standard UHF readers, depending on setup
- Flexible, thin substrate follows flat and gently curved fabric
- Same size and chip as the ID-L5815 sew-in tag
- Chip
- NXP UCODE 9xe
- Protocol
- EPC Class 1 Gen2 / ISO 18000-6C
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range
- Up to 8 m (depends on reader, antenna and environment)
Overview
Iron-on UHF RFID laundry tag in a 58 × 15 mm size
The ID-L5815-I is fixed to fabric with heat rather than thread. That takes the sewing bench out of the tagging process: each item is encoded, positioned and pressed, so a new batch of uniforms or sheets can be tagged in one pass. The 58 × 15 mm footprint sits in the middle of the ID-L range, wide enough for a sheet hem or the inside of a shirt front and small enough to go unnoticed.
Where an iron-on tag works best
- Smooth, flat fabrics such as polycotton uniforms, sheets and pillow covers, where the tag has full contact with the cloth
- New stock tagged in large batches before it enters circulation
- Programmes that cannot spare tailoring time for every item
For terry towels, textured weaves or items that are scrubbed hard, the sew-in ID-L5815 (58 × 15 mm) is the safer choice. It has the same size and chip, so both versions can run in one system.
Applying and reading
Encode the EPC before pressing so every item is on record from its first wash. Trial heat-press temperature and dwell time on a few pieces of each fabric, then wash-test them through your own process before a full rollout. Expect less than the 8 m maximum inside packed, damp trolleys; our RFID laundry and linen guide explains tunnel, cabinet and handheld reading.
Typical applications
- Staff uniforms
- Hotel bed linen
- Hospital sheets
- Workwear rental
- Laundry sorting
Specifications
Datasheet (PDF)| Model | ID-L5815-I |
|---|---|
| Dimensions | 58 × 15 mm |
| Chip | NXP UCODE 9xe |
| Protocol | EPC Class 1 Gen2 / ISO 18000-6C |
| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
| Read range | Up to 8 m (depends on reader, antenna and environment) |
| Mounting | Iron-on (heat-applied to fabric) |
| Material | Flexible, thin substrate; RoHS-compliant materials |
| Compatible with | Standard UHF RFID readers and printers |
