Silk Printable UHF Tag
A UHF RFID tag with a white matte silk face that takes thermal transfer or direct thermal printing, so a logo, barcode or QR code sits on the same tag as the EPC. Supplied on rolls in three standard sizes.
₹15
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
Choose a size
Optional: you can also confirm it in the quote
- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- White matte silk face for thermal transfer or direct thermal printing
- Print visible data and encode the EPC in one printer job
- Sizes 100 × 40, 60 × 40 and 50 × 25 mm; custom sizes made
- Chip options: Impinj Monza R6, Alien Higgs 3, NXP UCODE 8
- Reads at 3–8 m, depending on reader and antenna
- Supplied on rolls for 4-inch RFID label printers
- Frequency
- 865–868 MHz (UHF, India band)
- Protocol
- EPC Gen2 / ISO 18000-6C
- Chip
- Impinj Monza R6, Alien Higgs 3 or NXP UCODE 8
- Read range
- 3–8 m (depends on reader and antenna)
Overview
Silk printable UHF RFID tag for printed, encoded labels

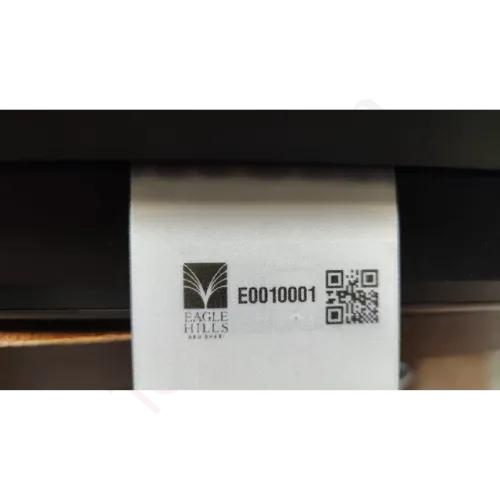

The Silk6050 combines a UHF RFID inlay with a white matte silk face that accepts thermal transfer or direct thermal printing. A brand logo, item number, barcode or QR code is printed on the face while the printer encodes the EPC, so what people see and what the reader sees always match.

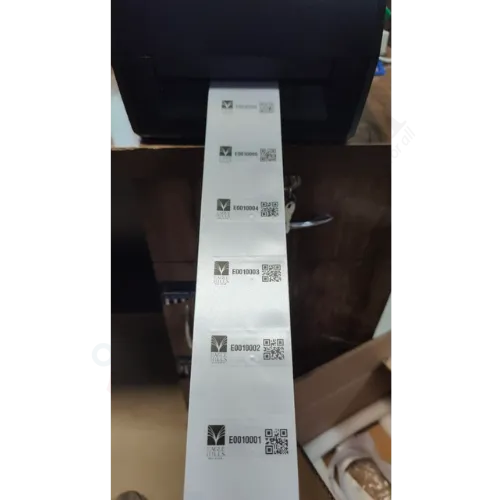

Printing and encoding
- Load the roll. Tags come on rolls for standard 4-inch RFID label printers such as the iX4R industrial RFID printer, Zebra ZT400 and ZD620, Honeywell PX940 or SATO CL4NX.
- Print and encode. Send the visible data and the EPC in one job; 96–128 bits of EPC are available.
- Apply. Use the permanent acrylic adhesive as standard, or the removable version on reusable items.
Choosing size and chip
Standard sizes are 100 × 40 mm, 60 × 40 mm and 50 × 25 mm, and custom sizes can be made. Pick the chip (Impinj Monza R6, Alien Higgs 3 or NXP UCODE 8) to match the readers and encoding scheme you already use. Read range is 3–8 m depending on reader and antenna. No wash-cycle rating is listed for the Silk6050, so for linen that goes through daily industrial washing, pick a wash-rated tag from our laundry tag range.
Typical applications
- Garment and apparel tags
- Retail price tags
- Carton labelling
- Pharma track-and-trace
- IT asset labels
Specifications
Datasheet (PDF)| Model | Silk6050 |
|---|---|
| Size | 100 × 40 mm, 60 × 40 mm, 50 × 25 mm |
| Frequency | 865–868 MHz (UHF, India band) |
| Protocol | EPC Gen2 / ISO 18000-6C |
| Chip | Impinj Monza R6, Alien Higgs 3 or NXP UCODE 8 |
| Memory | 96–128-bit EPC (encodable) |
| Material | White matte silk face, thermal printable |
| Adhesive | Permanent acrylic (standard); removable option |
| Read range | 3–8 m (depends on reader and antenna) |
| Packaging | Rolls for automatic dispensing |
| Compatible with | 4-inch RFID label printers, e.g. Zebra ZT400, ZD620, Identium iX4R, Honeywell PX940, SATO CL4NX |
