UHF RFID Fabric Laundry Tag UFLT-5610 (55 × 10 mm)
A slim 55 × 10 mm textile UHF laundry tag with an NXP UCODE 8 chip, IP68 sealing and 200 °C ironing tolerance. Rated for more than 200 washes and reads at up to 7 m.
₹32
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- Slim 55 × 10 mm flexible textile body
- NXP UCODE 8 chip, 128-bit EPC, 96-bit TID
- More than 200 wash cycles; IP68 sealed
- Withstands 200 °C ironing for 10 seconds
- Reads at up to 7 m (860–960 MHz)
- Sewn on; custom colours and punching on request
- Chip
- NXP UCODE 8
- Protocol
- ISO/IEC 18000-6C, EPC Class 1 Gen2
- Frequency
- 860–960 MHz (covers India's 865–868 MHz band)
- Read range
- Up to 7 m
Overview
UFLT-5610 slim UHF laundry tag for high-temperature finishing
At 55 × 10 mm, the UFLT-5610 is narrow enough to sit inside a hem, a towel border or a pillowcase seam without showing. It is a flexible textile tag with an aluminium-etched antenna on PET and an NXP UCODE 8 chip, sealed to IP68. It is rated for more than 200 washes and tolerates 200 °C ironing for 10 seconds, so it can stay on items that are pressed after every wash.
Memory and security
The chip has a 128-bit rewritable EPC for your item number and a 96-bit factory TID that cannot be changed, so each piece keeps a unique identity even if the EPC is rewritten. A 32-bit access password can lock the EPC against accidental overwrites. There is no user memory: wash counts and ownership are kept in your software against the EPC.
UFLT-5610 or UFLT-7515?
UFLT-5610 (this tag)
55 × 10 mm, IP68, reads up to 7 m. For narrow hems and smaller items.
UFLT-7515
75 × 15 mm, IP65, reads up to 6 m, with a laser-markable face for a printed number or QR code.
See the UFLT-7515 fabric laundry tag for its full specs, and the RFID laundry and linen guide to plan readers and software around the tags.
Typical applications
- Hotel bed linen
- Towels and bathrobes
- Hospital scrubs
- Staff uniforms
- Laundry sorting
- Linen rental

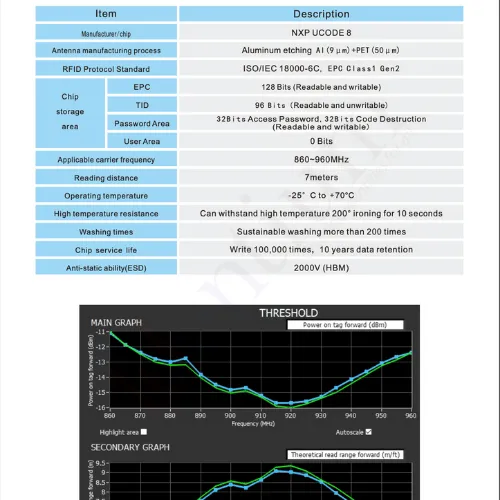

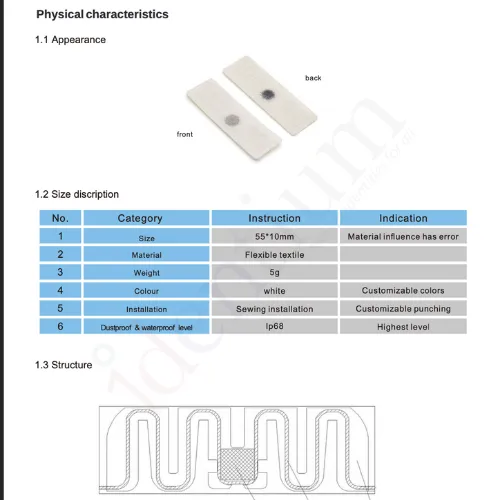

Specifications
Datasheet (PDF)| Model | UFLT-5610 |
|---|---|
| Dimensions | 55 × 10 mm |
| Weight | 5 g |
| Material | Flexible textile; aluminium-etched antenna (Al 9 µm + PET 50 µm) |
| Colour | White (custom colours available) |
| Chip | NXP UCODE 8 |
| Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen2 |
| Memory | 128-bit EPC (rewritable); 96-bit TID (read-only); 32-bit access and 32-bit kill passwords; no user memory |
| Frequency | 860–960 MHz (covers India's 865–868 MHz band) |
| Read range | Up to 7 m |
| Wash cycles | More than 200 |
| Heat resistance | 200 °C ironing for 10 seconds |
| Operating temperature | −25 °C to +70 °C |
| IP rating | IP68 |
| ESD protection | 2,000 V (HBM) |
| Chip life | 100,000 writes; 10-year data retention |
| Mounting | Sewing (custom punching available) |
