RFID Fabric Laundry Tag - UFLT-7515
A 75 × 15 mm flexible textile UHF laundry tag with an NXP UCODE 8 chip, rated for 200 wash cycles and readable at up to 6 m. The face can be laser-marked with a number or QR code for visual checks.
₹32
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 180 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- 75 × 15 mm flexible textile body, 2.75 g
- NXP UCODE 8 chip, 128-bit EPC, 96-bit TID
- Rated for 200 wash cycles; IP65
- Withstands 200 °C for up to 10 seconds
- Laser marking for a printed serial number or QR code
- Reads at up to 6 m
- Chip
- NXP UCODE 8 (other chips on request)
- Frequency
- 840–960 MHz (covers India's 865–868 MHz band)
- Protocol
- EPC Class 1 Gen2 / ISO 18000-6C
- Read range
- Up to 6 m
Overview
UFLT-7515 UHF fabric laundry tag for linen and uniforms
The UFLT-7515 is a 75 × 15 mm flexible textile tag for items that are washed, dried and ironed again and again. It carries an NXP UCODE 8 chip, is rated for 200 wash cycles and IP65, and tolerates 200 °C for up to 10 seconds, so ironing does not end its life. At 2.75 g it adds almost nothing to a sheet, towel or shirt.
Laser-marked for people and readers

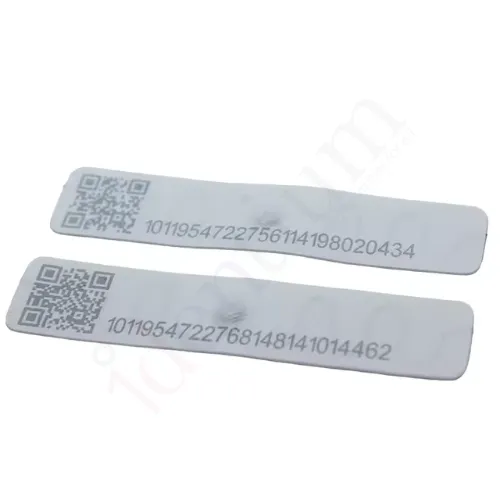

The white face can be laser-marked with a serial number or QR code. Staff can read the code by eye or with a phone camera while the RFID reader picks up the EPC, which helps when a count is disputed or an item has to be checked at a counter that has no reader.
How it fits a laundry workflow
- Tag. Sew one tag per item into a seam or hem, in the same position for each item type.
- Register. Link each EPC to the item, owner or client in your software.
- Count. Read soiled and clean batches with a UHF handheld or a fixed reader at sorting and dispatch; the tag reads at up to 6 m.
System design is covered in the RFID laundry and linen guide. For a narrower tag with IP68 sealing, see the UFLT-5610.
Typical applications
- Hospital linen
- Hotel housekeeping
- Industrial workwear
- Textile rental
- Dry cleaning
- Staff uniforms

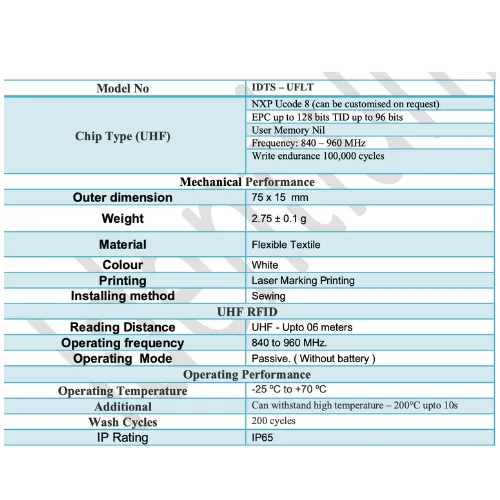

Specifications
Datasheet (PDF)| Model | UFLT-7515 |
|---|---|
| Dimensions | 75 × 15 mm |
| Weight | 2.75 ± 0.1 g |
| Material | Flexible textile |
| Colour | White |
| Chip | NXP UCODE 8 (other chips on request) |
| Memory | EPC up to 128 bits; TID up to 96 bits; no user memory |
| Frequency | 840–960 MHz (covers India's 865–868 MHz band) |
| Protocol | EPC Class 1 Gen2 / ISO 18000-6C |
| Read range | Up to 6 m |
| Write endurance | 100,000 cycles |
| Wash cycles | 200 |
| Heat resistance | 200 °C for up to 10 seconds |
| Operating temperature | −25 °C to +70 °C |
| IP rating | IP65 |
| Printing | Laser marking |

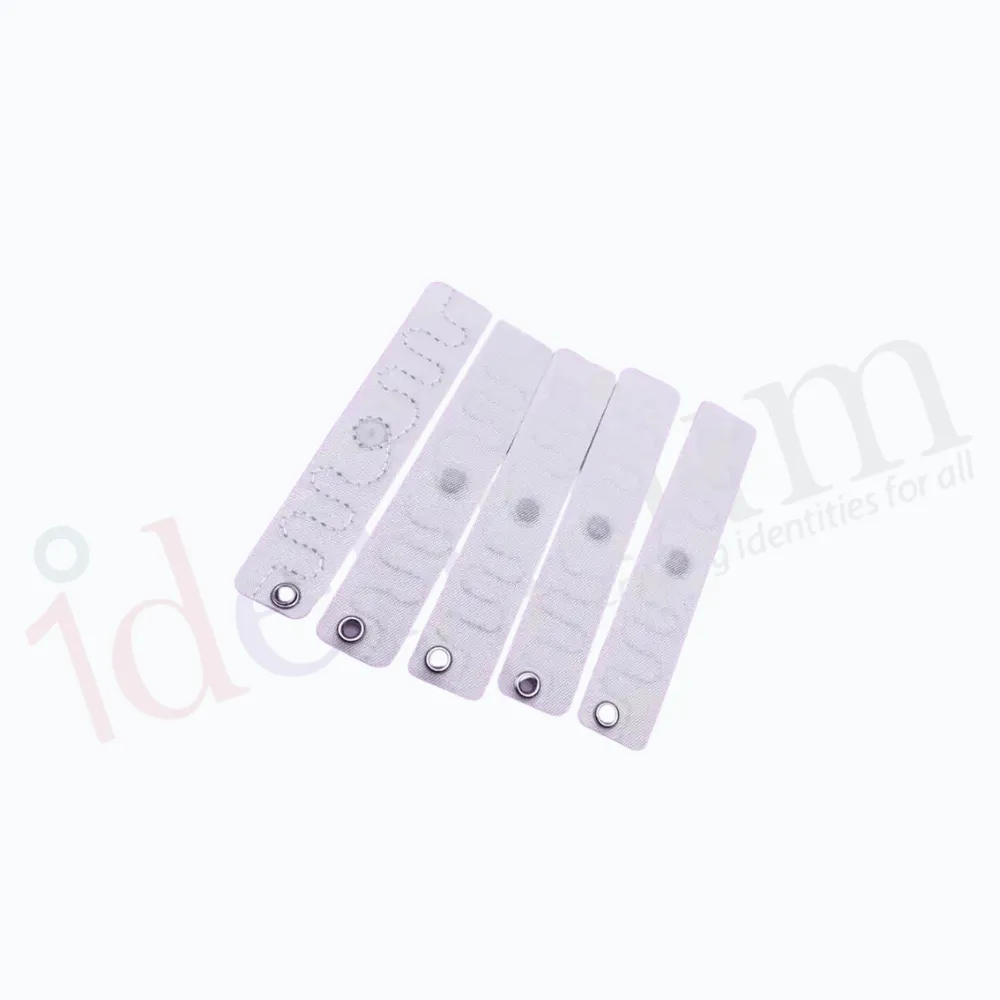

| Mounting | Sewn in; eyelet version for rivet fixing |
