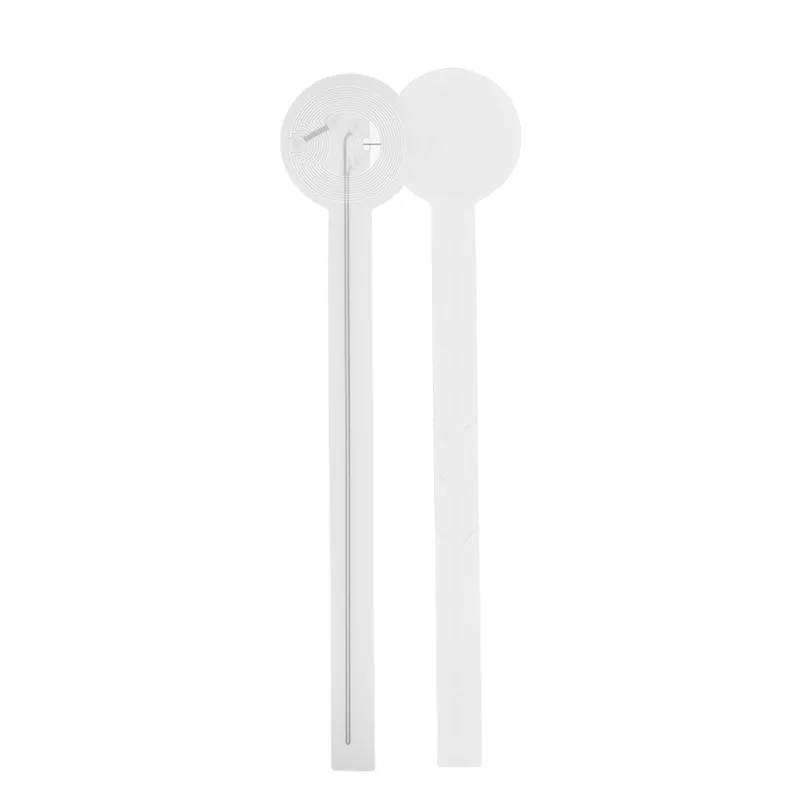

NFC Wine Authentication Label ID-11921-NTAG213 (NTAG213 TT)
A 119.6 × 21 mm NFC strip label with the NTAG213 TT tamper-detect chip for wine and spirits bottles. A shopper, retailer or inspector taps the bottle with a phone to check that it is genuine and whether the seal is intact.
₹12
per piece + 18% GST
Minimum order: 500 pieces · the final price for your quantity is confirmed in the quote
View datasheet PDF · 165 KB- 7-day replacement · 1-year warranty against manufacturing defects
- Blue Dart next-day delivery
- Samples ₹250 (1–2 pcs, incl. shipping) · request
Key features
- NTAG213 TT chip with a tamper-detect loop whose status is read over NFC
- Long 119.6 × 21 mm strip suited to placement over the cork or cap
- NFC Forum Type 2 / ISO/IEC 14443A, read by NFC Android phones and iPhones
- 180 bytes of memory
- Listed read range up to 0.1 m
- Frequency
- 13.56 MHz (HF / NFC)
- Chip
- NTAG213 TT (tamper detect)
- Protocol
- NFC Forum Type 2 / ISO/IEC 14443A
- Read range
- Up to 0.1 m
Overview
NFC wine authentication with tamper detection
The ID-11921-NTAG213 is built to show that a bottle of wine or spirits is genuine and has not been opened. It uses the NTAG213 TT, a version of NTAG213 with a tamper-detect loop. The chip reports whether that loop is intact, so the same tap that opens your authenticity page can also tell whether the seal has been broken.
Why a long strip
At 119.6 × 21 mm the label is long and narrow, a shape suited to running over the cork or screw cap and down the neck. Placed this way, the bottle cannot be opened without breaking the strip, and the next tap reads the changed tamper status.
How a tap-to-verify check works
- Encode. Each label is written with a link to your verification page, usually tied to the chip's unique ID.
- Apply. The strip goes over the closure on the bottling line or by hand.
- Tap. A buyer, retailer or inspector holds an NFC phone to the neck and the page opens in the browser.
UHF wine labels such as the 9503-R6 RFID wine label are read in bulk by warehouse readers; this NFC label is checked one bottle at a time by a phone. Other NFC formats are in NFC Tags & Labels.
Typical applications
- Wine bottle authentication
- Spirits and liquor bottles
- Premium beverage seals
- Brand protection
- Consumer tap-to-verify
Specifications
Datasheet (PDF)| Model | ID-11921-NTAG213 |
|---|---|
| Frequency | 13.56 MHz (HF / NFC) |
| Chip | NTAG213 TT (tamper detect) |
| Memory | 180 bytes |
| Protocol | NFC Forum Type 2 / ISO/IEC 14443A |
| Dimensions | 119.6 × 21 mm |
| Read range | Up to 0.1 m |
