IDTS-8654 UHF RFID Pallet Tag 86 x 54 x 5 mm White ABS Screw or Adhesive Mount for Plastic Crates

The IDTS-8654 is a passive UHF RFID plate tag moulded in white ABS, measuring 86 x 54 x 5 mm — a credit-card footprint on a rigid 5 mm body, with rounded corners and four corner mounting holes. It arrives ready to fix either way: four 3.3 mm holes on a 75 mm spacing for screw fixing, and 3M 9448A double coated tissue tape already applied to the back. This is a non anti-metal type, intended for pallets and non-metal surfaces, and it runs the ISO18000-6C air interface that Indian warehouse, WMS and handheld reader deployments are already built around.

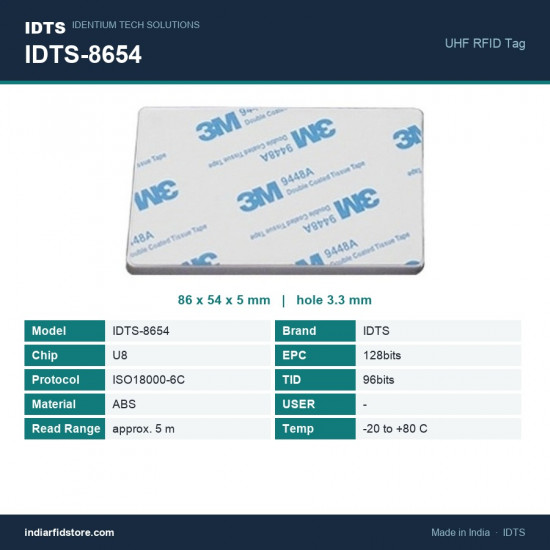

Key Specifications

• SKU: IDTS-8654 (IDentium / IDTS)
• Product type: Passive UHF RFID tag
• Chip: U8 (as specified)
• Protocol: ISO18000-6C
• Frequency: 860-960 MHz (global UHF band); India operates in the 865-867 MHz de-licensed band
• EPC memory: 128 bits
• TID memory: 96 bits
• Read range: approx. 5 m
• Material: ABS
• Colour: White
• Dimensions: 86 mm (length) x 54 mm (width) x 5 mm (thickness)
• Shape: Rectangular plate with rounded corners and four corner mounting holes

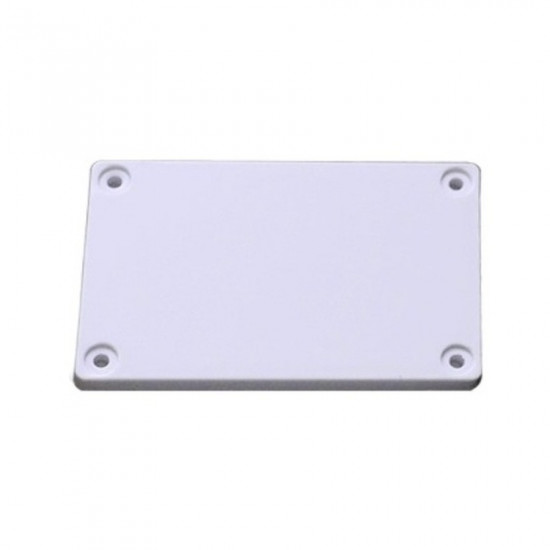

• Mounting holes: Four corner holes, 3.3 mm diameter, 75 mm hole spacing, for screw fixing

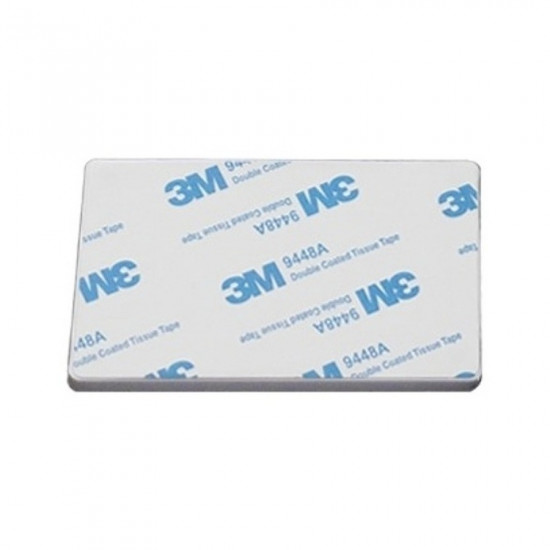

• Adhesive backing: Back pre-applied with 3M 9448A double coated tissue tape
• Operating temperature: -20 C to +80 C
• Metal compatibility: Non anti-metal type — intended for pallets and non-metal surfaces

Applications

• Plastic and wooden pallet tracking across warehouses, 3PL yards and distribution centres, where the 86 x 54 mm plate sits flat on a stringer or deck board.
• Returnable plastic crates and totes in FMCG, dairy, poultry and e-commerce reverse-logistics pools, screwed or taped to a flat crate wall.
• Bulk bins, gaylords and returnable transit packaging moving between manufacturing lines, paint shops and supplier plants.
• Plastic trolleys, roll cages and linen carts in hospitals, hotels and industrial laundries that need repeatable trip counting.
• Non-metal asset tagging for IT audits and facility registers — moulded plastic enclosures, ABS equipment casings, fibreglass panels and composite housings.
• Waste and utility bin tracking for municipal contractors, industrial housekeeping and effluent-drum handling on non-metal containers.
• Record cartons and archive boxes in pharma documentation rooms, BFSI back offices and railway stores, where a rigid white plate stays readable on a shelf face.

Why Choose This Tag

• Two fixing methods supplied in one part. Four 3.3 mm corner holes at 75 mm spacing take screws for permanent, tamper-aware fixing, while the pre-applied 3M 9448A double coated tissue tape lets your team commission a pallet or crate pool without drilling.
• Rigid ABS plate, not a flexible label. A 5 mm thick moulded ABS body in a 86 x 54 mm rectangular plate with rounded corners holds its shape on crate walls and deck boards in the rough handling of a working dock.
• Around 5 m read range for aisle and dock-door workflows. An approx. 5 m figure suits handheld cycle counts down a racking aisle and fixed-reader gate portals, so one tag population can serve both.
• Standards-based memory your WMS can address. ISO18000-6C with a 128-bit EPC bank plus a 96-bit TID bank gives integrators room for structured pallet or SSCC-style numbering alongside a second memory bank to reference.
• -20 C to +80 C operating range. Covers chilled and frozen store rooms at one end and hot Indian warehouse interiors and closed containers at the other, without changing tag part numbers across the network.

Read range is a typical figure, not a guaranteed maximum. Actual performance varies with the reader and its output power, antenna type and orientation, the mounting surface and its contents, and the surrounding RF environment. This is a non anti-metal tag intended for pallets and non-metal surfaces; we recommend a site trial on your own assets before bulk rollout.
