IDTS-6030 UHF On-Metal RFID PCB Tag 60 x 30 mm Screw-Mount Anti-Metal Tag for Asset Tracking

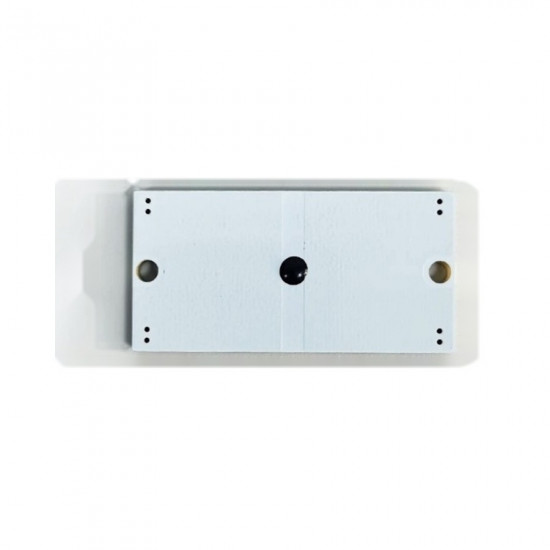

The IDTS-6030 is a passive UHF on-metal (anti-metal) RFID tag built on a rigid white PCB plate measuring 60 x 30 x 4 mm with rounded corners. It is designed to be fixed directly onto metal assets, where an ordinary label tag would be detuned, and it reads at approx. 6 m on metal. Two 4 mm mounting holes at the left and right ends, spaced 54 mm apart, allow the tag to be screwed or riveted permanently to equipment; a central hole is also present. With an operating range of -20 C to +150 C and ISO18000-6C compliance, it suits Indian warehouses, plants, utilities and IT asset teams that need a hard tag which stays with the asset for its full service life.

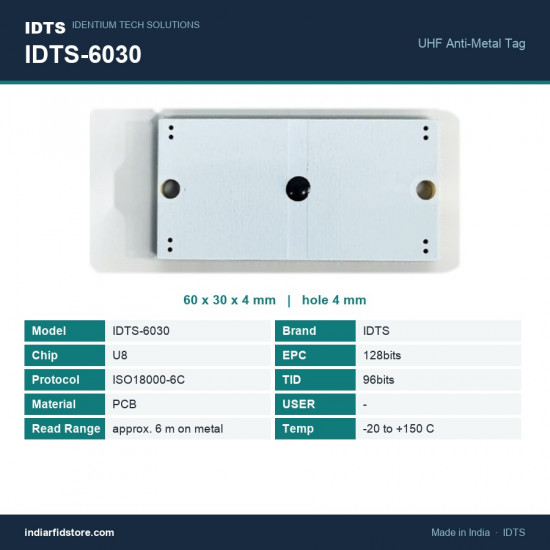

Key Specifications

• SKU: IDTS-6030 (IDentium / India RFID Store)
• Product type: UHF on-metal (anti-metal) RFID tag
• Category: PCB and Ceramic Tags
• Chip: U8 (as specified)
• Protocol: ISO18000-6C
• Frequency: 860-960 MHz (global UHF band); India operates in the 865-867 MHz de-licensed band
• EPC memory: 128 bits
• TID memory: 96 bits
• Read distance: approx. 6 m on metal
• Material: PCB
• Substrate class: PCB
• Anti-metal: Yes - intended for mounting on metal surfaces
• Length: 60 mm
• Width: 30 mm
• Thickness: 4 mm (printed as 4 mm at the highest point)
• Mounting holes: 4 mm diameter - two holes at the left and right ends, plus a central hole
• Hole spacing: 54 mm
• Shape: Rectangular plate with rounded corners
• Colour: White
• Operating temperature: -20 C to +150 C

Applications

• IT asset audits: servers, switches, patch panels, UPS units and rack frames in data centres and corporate IT rooms, where the 60 x 30 mm footprint fits neatly on a chassis face or rack rail.
• Tool cribs and maintenance workshops: larger hand tools, jigs, fixtures, moulds and die blocks issued and returned across shifts.
• Gas and industrial cylinder tracking: screw or clamp the tag to cylinder collars, cages and trolleys for filling-plant and distribution cycle counts.
• Utility and electrical assets: distribution boxes, feeder panels, switchgear cabinets, transformer enclosures and meter boards on a maintenance register.
• Manufacturing and warehousing: steel racking bays, metal bins, stillages, pallet cages and WIP trolleys moving through busy aisles.
• Railways and depots: rolling-stock sub-assemblies, workshop equipment, bogie stands and depot handling gear.
• Pharma and food processing: stainless steel vessels, CIP skids, mixing tanks and cleaning trolleys, including processes that run hot within the tag's stated -20 C to +150 C operating range.

Why Choose This Tag

• Made for metal, not adapted to it. This is an anti-metal design that is meant to sit directly on a metal surface, and it still delivers approx. 6 m on metal - enough for handheld audits down a rack row or an aisle.
• Bolt it on and forget it. Two 4 mm holes at the ends, 54 mm apart, plus a central hole, let you screw or rivet the tag to the asset instead of relying on adhesive alone - useful where assets are washed, handled roughly or moved often.
• Wide operating window. A stated operating temperature of -20 C to +150 C covers cold stores at one end and hot process areas at the other, so one part number can cover several zones of a plant.
• Standards-based data, ready for your software. ISO18000-6C with 128-bit EPC and 96-bit TID gives you a serialised, writable EPC for your own asset numbering plus a factory TID for verification.
• Compact rigid plate. A 60 x 30 x 4 mm white PCB plate with rounded corners mounts flat on chassis panels, frames and brackets without hanging over edges.

Read range figures are typical, not guaranteed maximums. Actual performance varies with the reader and its transmit power, the antenna used, the mounting surface and the surrounding environment. We recommend a site trial with your own reader before rolling out at scale.
