IDTS-5213 UHF On-Metal RFID PCB Tag 52x13x3mm Screw-Mount Asset Tracking

The IDTS-5213 is a slim rectangular UHF on-metal (anti-metal) RFID tag on a PCB substrate, measuring 52 x 13 x 3 mm with rounded corners and a black finish. It is built to be screwed straight onto metal — racks, panels, tool bodies, frames and machine housings — where an ordinary label tag would simply stop reading. With an Impinj Monza R6-P chip, ISO18000-6C air interface and a read range of approx. 4 m on metal, it turns metal assets that are hard to identify into items your handheld or fixed reader can pick up in seconds.

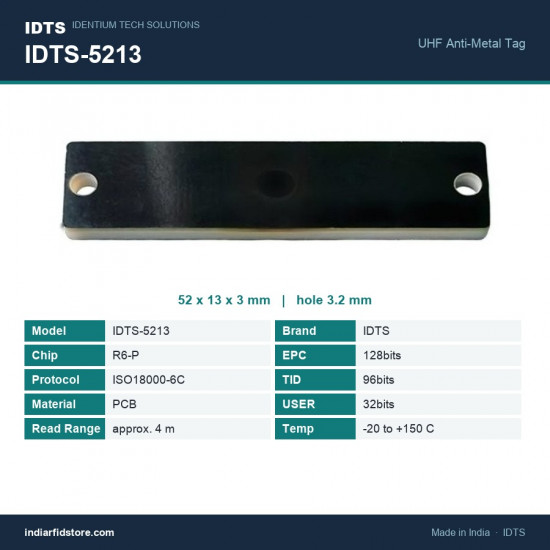

Key Specifications

• SKU: IDTS-5213
• Product type: UHF on-metal (anti-metal) RFID tag
• Category: PCB and Ceramic Tags
• Frequency: 860-960 MHz (global UHF band); India operates in the 865-867 MHz de-licensed band
• Chip: Impinj Monza R6-P
• Protocol: ISO18000-6C
• Memory: EPC 128 bits / TID 96 bits / User 32 bits
• Read range: approx. 4 m on metal
• Operating temperature: -20 C to +150 C
• Dimensions: 52 mm (length) x 13 mm (width) x 3 mm (thickness)
• Mounting hole diameter: 3.2 mm
• Hole spacing: 47 mm
• Mounting arrangement: two mounting holes at each end plus a countersunk hole in the centre
• Material: PCB
• Substrate class: PCB
• Shape: rectangular bar with rounded corners
• Colour: black
• Anti-metal: Yes — intended for mounting on metal surfaces

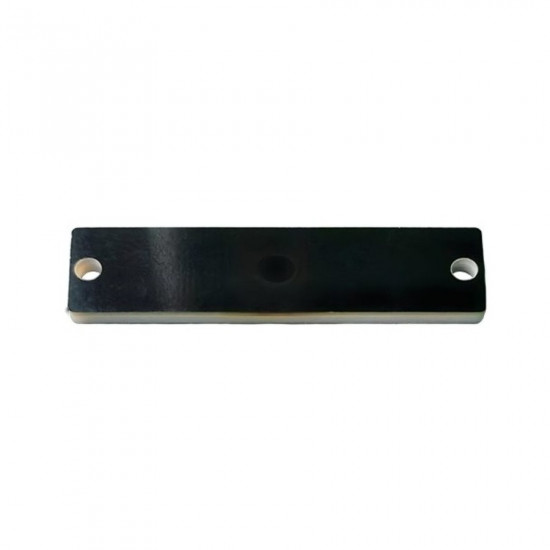

• Finish: black moulded/coated top face over a metallic base layer, as shown in the product photograph

Applications

• IT asset audits: server racks, network switches, patch panels and UPS enclosures, where the 52 x 13 mm bar sits neatly along a rail or chassis edge
• Tool crib and calibration control: metal tool bodies, gauges, torque wrenches and fixtures issued and returned across a shift
• Jigs, fixtures, dies and moulds on the manufacturing shop floor, including items that see elevated process temperatures
• Utilities and electrical maintenance: distribution boards, control panels, meter enclosures and switchgear cubicles
• Process plant and pharma utility equipment: pumps, motors, valves and pipework identification for inspection rounds
• Warehouse returnable metal assets: trolleys, cages, stillages and racking bays that need a permanent, screw-fixed identity
• Railway and depot maintenance: signalling cabinets, workshop equipment and maintenance fixtures

Why Choose This Tag

• Made for metal, not adapted to it. This is an anti-metal tag designed to be fitted on metal surfaces, delivering approx. 4 m on metal instead of the dead zone you get from a standard label tag.
• Bolt it on and leave it. Two 3.2 mm mounting holes at 47 mm spacing, plus a countersunk hole in the centre, give you a hard-mounted fixing for assets that get moved or handled roughly.
• Wide thermal window. A rated operating range of -20 C to +150 C suits assets that live near heat — ovens, motors, dies and process equipment — as well as ordinary ambient storage.
• Slim bar footprint. At 52 x 13 x 3 mm with rounded corners and a black finish, it fits narrow rails, panel edges and tool bodies where a large square on-metal tag will not sit flat.
• Standards-based and ready to encode. Impinj Monza R6-P on ISO18000-6C, with 128-bit EPC, 96-bit TID and 32-bit user memory, works with the UHF readers and middleware already deployed in Indian warehouses, plants and IT estates.

Read range is indicative. Actual performance varies with the reader and antenna used, transmit power, tag orientation, and the size and shape of the metal surface the tag is mounted on. We recommend a short on-site trial in your own environment before bulk rollout.
