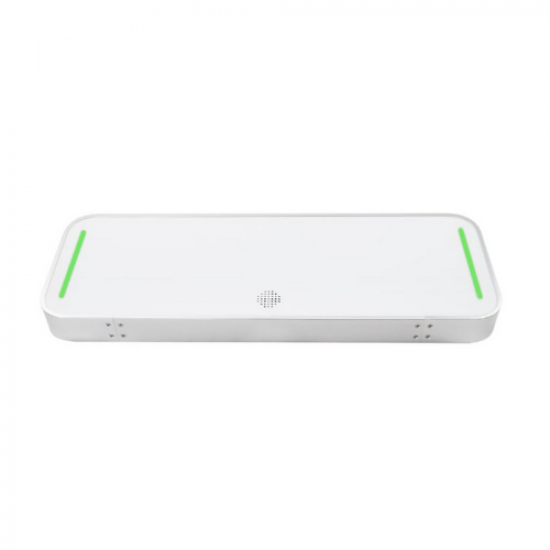

RFID Ceiling Phase Reader CP310

The CP310 RFID Ceiling Phase Reader is a specialized overhead tracking solution designed for wide-area monitoring and inventory management. Powered by the industry-leading Impinj E310 chipset, it delivers high-sensitivity reading and precise phase-based data for movement tracking.

---

Key Features

·       High-Performance Engine: Equipped with the Impinj E310 chipset for superior tag sensitivity and rapid read rates.

·       Aesthetic Industrial Design: Features a beautiful aluminium die-cast body that is durable, modern, and blends seamlessly into professional environments.

·       Overhead Optimization: Designed specifically for ceiling mounting, providing unobtrusive coverage for retail floors, warehouses, or healthcare facilities.

·       Advanced Antenna System: Specialized antenna design optimized for wide-area phase-based tracking, allowing for directionality and movement sensing.

·       Inbuilt Dual Color LED and Buzzer

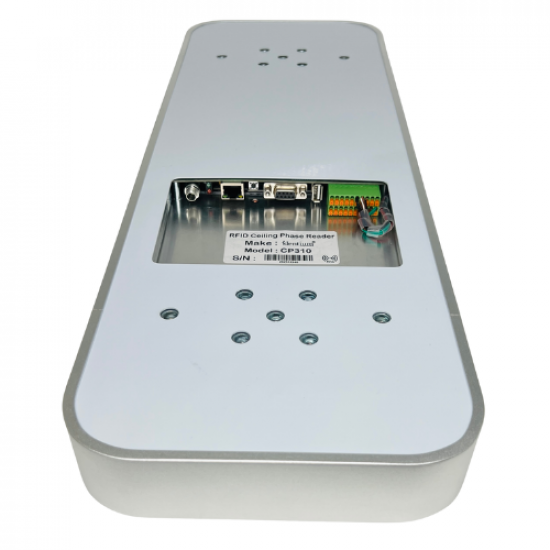

·       Versatile I/O: Includes a multi-pin terminal block for custom input/output configurations and system integration.

---



Applications:

---

·  Retail Analytics: Tracking customer movement and high-value item locations in real-time.

·  Warehouse Logistics: Hands-free inventory monitoring and portal tracking.

·  Healthcare: Asset tracking for mobile medical equipment across large wards.

·  Smart Buildings: Automated attendance and personnel location sensing.



Product technical parameter

Model number	CP310 – POE,Wifi, RS232, USB, 3 x Relay, 1000 tag storage
Frequency	865-867MHz(INDIA standard, can be customized on request)
Protocol	ISO18000-6C(EPC GEN2)
RFIC	CP310 – Impinj E310 : Read Speed 250 tags/s CP710– Impinj E710 : Read Speed 1000 tags/s
Built-in antenna	Near-field/Short-range optimized to avoid stray reads
Work mode	Active , Answer
RF power	0-30dbm(adjustable)
Read distance	1- 3 m(depends on tag)
Reading Clue	Standard : Buzzer
Communication Interface	RS232/USB/WG26/RELAY/POE/WIFI,Bluetooth(optional)
Power supply	POE / 9-24V | USB – 5V
Operating Temp	-10~+55℃
Storage Temp	-20~+75℃
Reader Size	575*200*45mm
Reader weight	2kg
